• Arduino Mkr Wan 1300
  • Arduino Mkr Wan 1300
1 2

Anu Electronics

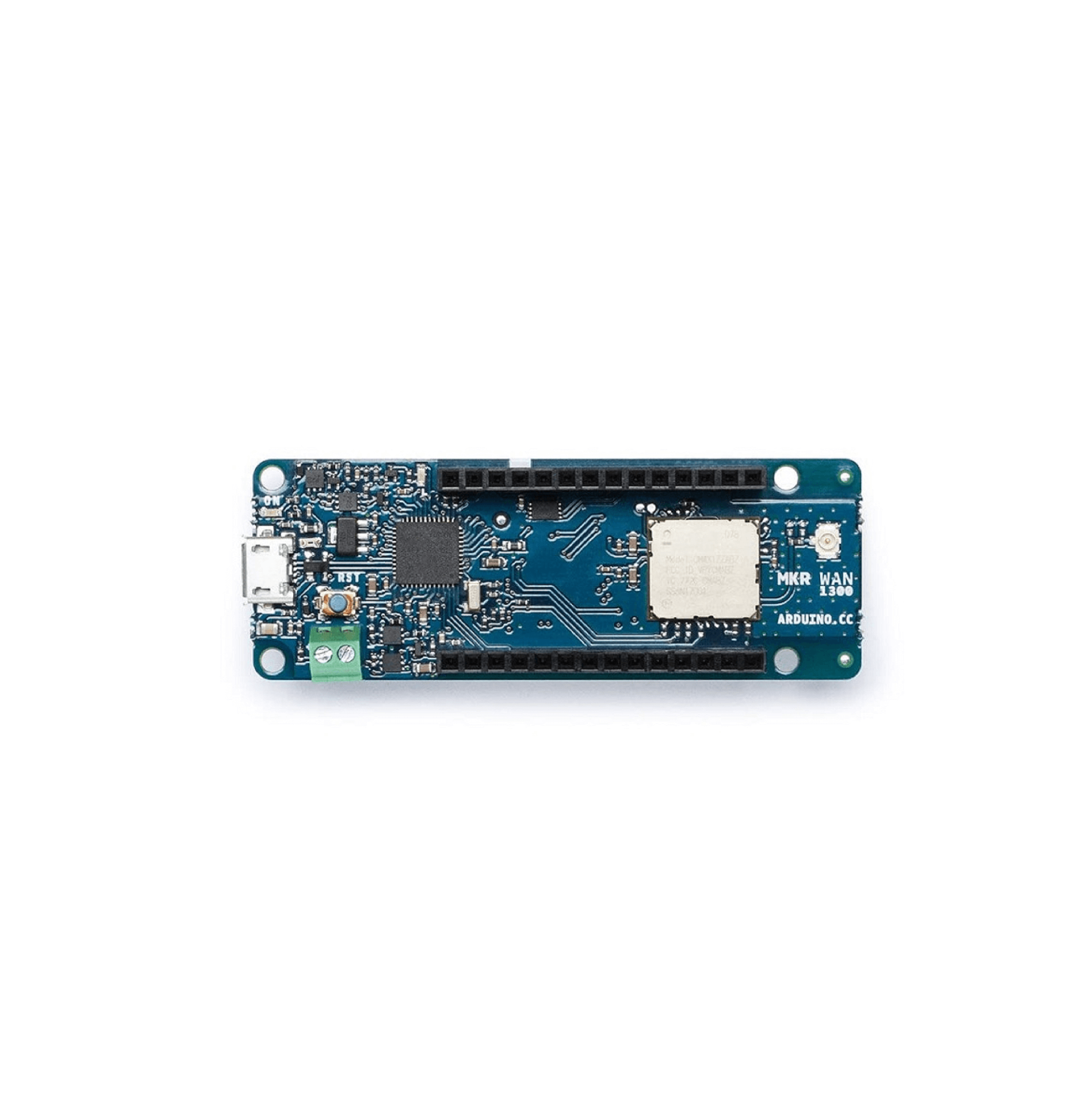

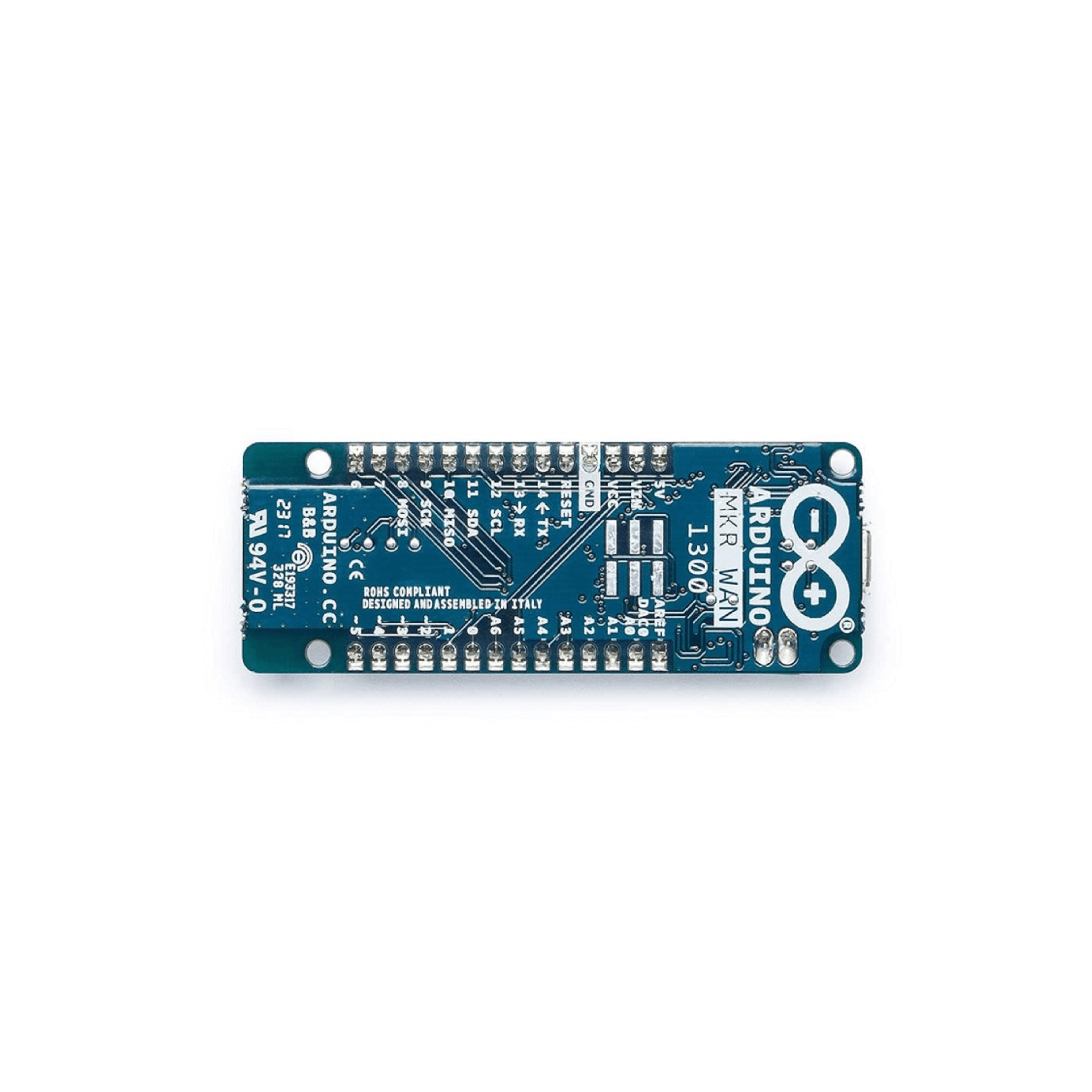

Arduino Mkr Wan 1300

Arduino Mkr Wan 1300

Rs. 4,000.00
Rs. 4,500.00 Rs. 4,000.00
Sale Sold out
Tax included. Shipping calculated at checkout.

Description :

ARDUINO MKR WAN 1300 is a powerful board that combines the functionality of the MKR Zero and LoRa connectivity. It is the ideal solution for makers wanting to design IoT projects with minimal previous experience in networking having a low power device.
The Arduino MKR WAN 1300 board provides a practical and cost-effective solution to add LoRa connectivity to projects requiring low power. This open-source board can be connected to the Arduino IoT Cloud, your own LoRa network using the Arduino LoRa PRO Gateway, existing LoRaWAN infrastructure like The Things Network, or even other boards using the direct connectivity mode.

Key Features :

  1.  A revised version of the MKR 1300 including better battery control and an onboard Flash memory chip.
  2. Based on the Microchip SAMD21 low power processor, the Murata CMWX1ZZABZ LoRa module, and the MKR family’s characteristic crypto chip (the ECC508).
  3. Connect your MKR board to Arduino’s IoT Cloud, a simple and fast way to ensure secure communication for all of your connected things.

  Technical Specification :

Model Type MKR WAN 1300
Microcontroller SAMD21 Cortex-M0+ 32bit low power ARM
Operating Voltage (VDC) 3.3
Input Voltage (Recommended) 5V
Antenna Power 2dB
Carrier Frequency 433/868/915 MHz
Analog I/O Pins Input Pins 8 : (ADC 8/10/12 bit), Output Pins : 1 (DAC 10 bit)
Digital I/O Pins 8
PWM Digital I/O Pins 12 (0, 1, 2, 3, 4, 5, 6, 7, 8, 10, A3 – or 18 -, A4 -or 19)
Clock Speed 32.768 kHz (RTC), 48MHz
DC Current Per I/O Pin (mA) 7
Flash Memory 256 KB
EEPROM None
SRAM 32
Length (mm) 67.6
Width (mm) 25
Height (mm) 10
Weight (mm) 32
Shipping Weight  0.04Kg
Shipping Dimensions  7 × 3 × 2 cm

Package Include :

  • 1 x Arduino Mkr Wan 1300
View full details
