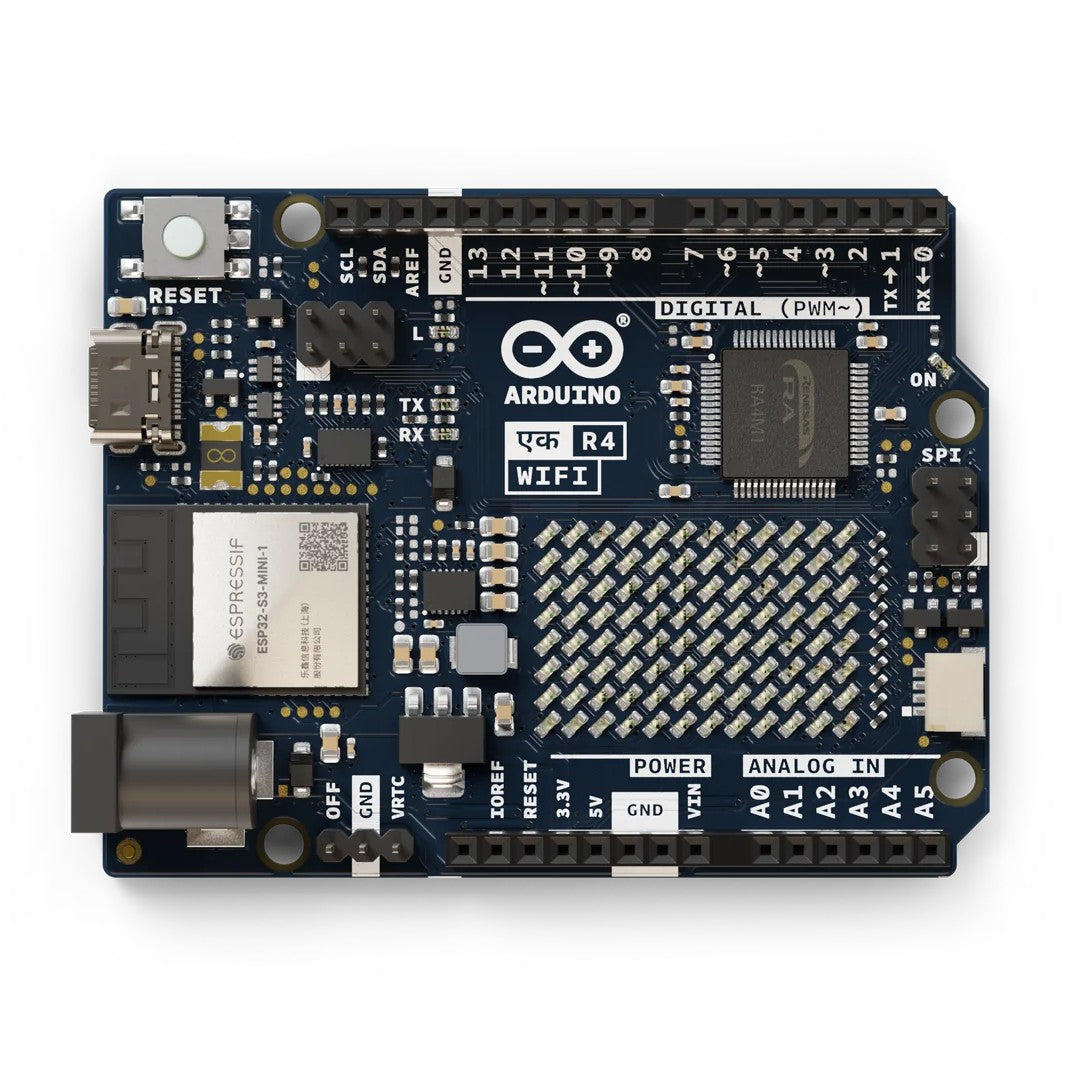

Arduino Uno R4 Wifi
Arduino Uno R4 Wifi
Couldn't load pickup availability
Description :
Introducing the latest addition to the Arduino lineup, the Arduino UNO R4 WiFi board. This new version of the UNO board brings significant advancements, making it a powerful tool for your projects. The standout feature of the UNO R4 WiFi is the integration of an ESP32-S3 Wi-Fi module (ESP32-S3-MINI-1-N8) which equip the UNO with Inbuilt Bluetooth and WiFi.The UNO R4 WiFi is part of the first UNO series of 32-bit development boards, being previously based on 8-bit AVR microcontrollers. There are thousands of guides, tutorials, and books written about the UNO board, where the UNO R4 WiFi continues its legacy.
Key Features:
- The UNO R4 is now a 32-bit Microcontroller board, being previously based on 8-bit AVR
- The board features 14 digital I/O ports, 6 analog channels
- Dedicated pins for I2C, SPI and UART connections.
-
It has a significantly larger memory:
- 8 times more flash memory (256 kB)
- 16 times more SRAM (32 kB).
- Fastest 48 MHz clock Speed. It is 3x faster than its predecessors.
- Onboard ESP32-S3 module for Wi-Fi & Bluetooth connectivity,
-
Onboard 12×8 LED matrix
- Making one of the most visually unique Arduino boards to date.
- The LED matrix is fully programmable, where you can load anything from still frames to custom animations.
Technical Specification :
| Model | Arduino UNO R4 WiFi |
| Overview | 48 MHz Arm Cortex-M4 microprocessor with a floating point unit (FPU)5 V operating voltageReal-time Clock (RTC)Memory Protection Unit (MPU)Digital-to-analog Converter (DAC) |
| Memory | 256 kB Flash Memory32 kB SRAM8 kB Data Memory (EEPROM) |
| Peripherals | Capacitive Touch Sensing Unit (CTSU)USB 2.0 Full-Speed Module (USBFS)14-bit ADCUp to 12-bit DACOperational Amplifier (OPAMP) |
| Power | Operating voltage for RA4M1 is 5 VRecommended input voltage (VIN) is 6-24 VBarrel jack connected to VIN pin (6-24 V)Power via USB-C at 5 V |
| Communication | 1x UART (pin D0, D1)1x SPI (pin D10-D13, ICSP header)1x I2C (pin A4, A5, SDA, SCL)1x CAN (pin D4, D5, external transceiver is required) |
| Wifi | Wi-Fi support with 802.11 b/g/n standard (Wi-Fi® 4)Bit rate at up to 150 Mbps2.4 GHz band |
| Bluetooth | Bluetooth 5 |
| Shipping Weight | 0.03 kg |
| Shipping Dimensions | 10 × 8 × 4 cm |
Package Include :
- 1 x Arduino Uno R4 Wifi
