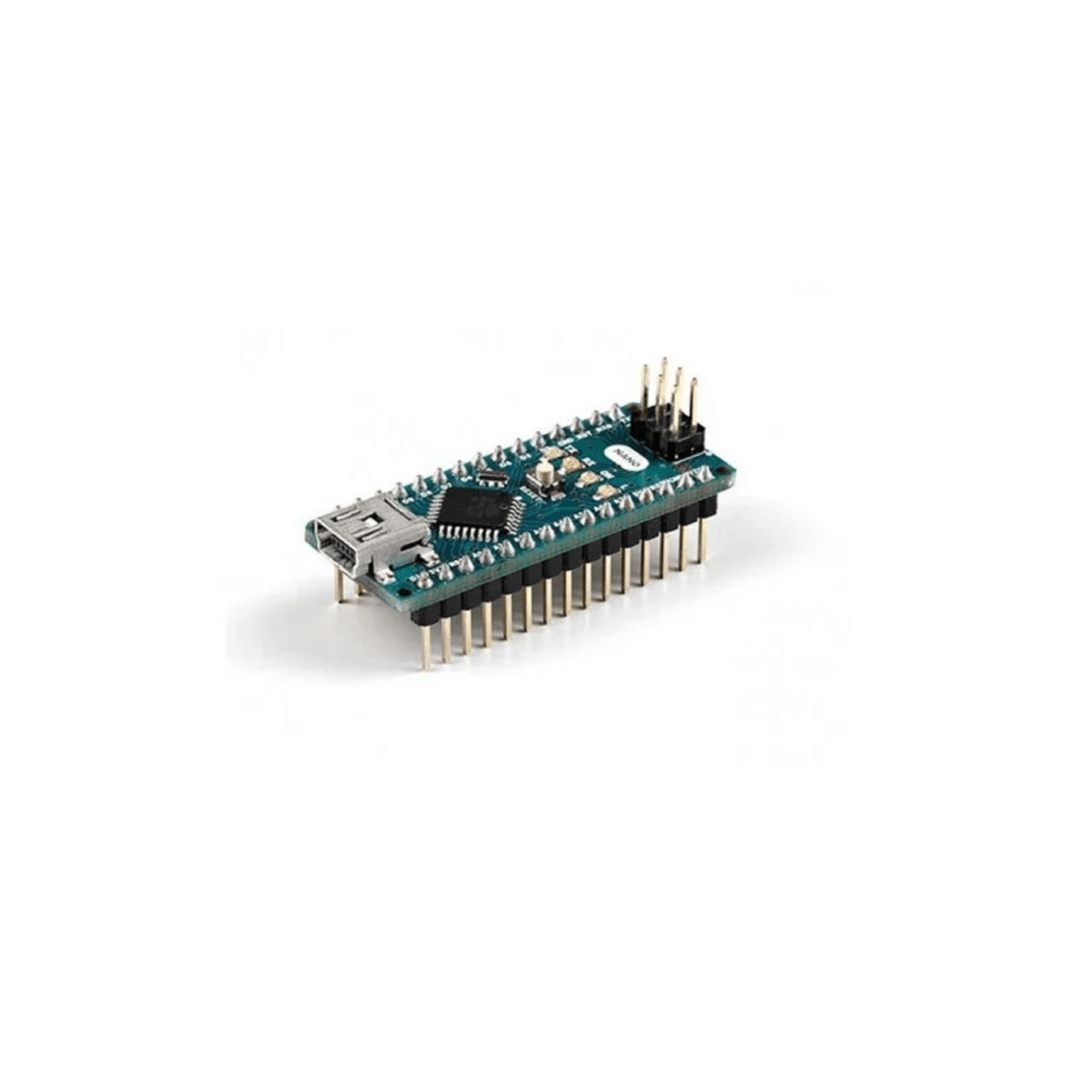

Nano Board ATmega328P – Arduino Compatible
- ATmega328P, 16 MHz, 5 V logic
- 14 digital I/O (6 PWM), 8 analog inputs
- Mini-B USB, programs from the Arduino IDE
- Breadboard-friendly, about 18 × 45 mm
- Arduino compatible (not an official board)
- Description
This Nano board is an Arduino-compatible development board built around the ATmega328P microcontroller. It plugs straight into a breadboard, connects over a Mini-B USB cable, and programs from the Arduino IDE like an Uno, in a much smaller footprint.
Specifications
| Microcontroller | ATmega328P |
|---|---|
| Operating voltage | 5 V |
| Input voltage (VIN, recommended) | 7–12 V |
| Digital I/O pins | 14 (6 PWM) |
| Analog input pins | 8 |
| Clock speed | 16 MHz |
| Flash memory | 32 KB (2 KB used by bootloader) |
| SRAM | 2 KB |
| EEPROM | 1 KB |
| USB connector | Mini-B |
| Size | Approx. 18 × 45 mm |
Typical uses
- Breadboard prototypes where an Uno is too large
- Compact sensor nodes and data loggers
- Wearables, small robots and RC projects
- College mini-projects and final-year project hardware
Getting started
In the Arduino IDE, select Arduino Nano as the board and the ATmega328P processor. If the upload fails, try the ATmega328P (Old Bootloader) option, which many Nano-compatible boards use. You need a Mini-B USB cable (not micro-USB).
Frequently asked questions
Is this an official Arduino board?
No. It is an Arduino-compatible Nano board. It runs the same sketches and libraries as the official Nano.
How is it different from an Uno?
Same ATmega328P chip and 16 MHz clock, with 2 extra analog inputs (8 vs 6), in a breadboard-friendly size. It has no DC barrel jack; power it through USB or the VIN pin.
Can I power it from a 9 V battery?
Yes, through the VIN pin (7–12 V recommended). Do not connect 9 V to the 5V pin.
What's included
- 1 × Nano ATmega328P board (Arduino compatible)
