ESP32-WROOM-32E Development Board
slide 1 of 1
ESP32-WROOM-32E Development Board
Anu Electronics

ESP32 WROOM 32E Development Board

Product SKU: ESP000006
Other people want this. 13 people have this in their carts right now.
Want it delivered by Monday, 31 March
Order today until 15:00
Available:
Only 50 items in stock
50 items in stock
In stock
Pre-order
Out of stock
Rs. 1,643.00
Rs. 1,800.00
Notify me When Available
You will receive an email when the product is available.
  • Description

Description :

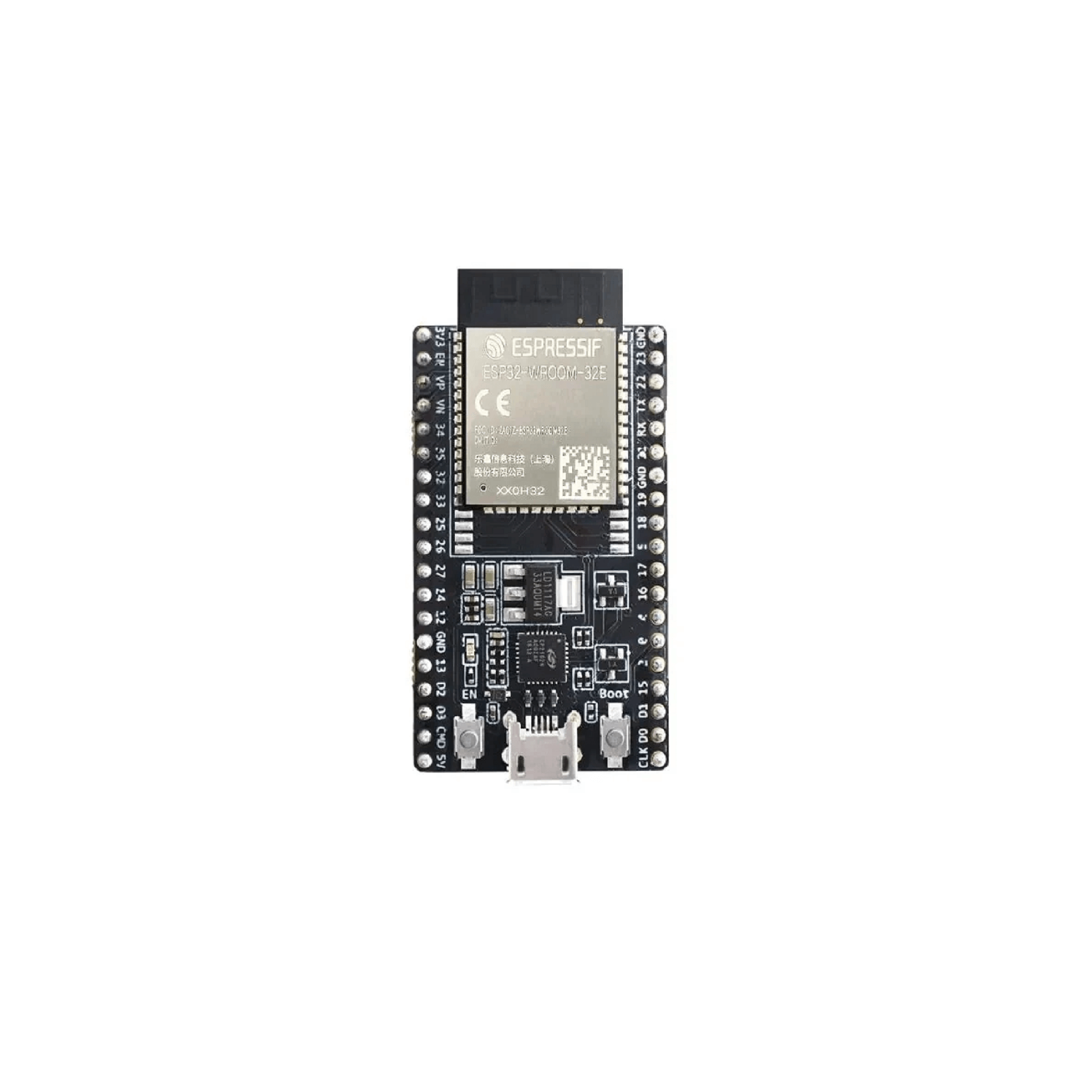

ESP32-WROOM-32E Development Board Module for Arduino
SP32 is far superior to Arduino UNO. That means it has all the features you need to create your IoT & non-IoT projects, ESP32 can perform as a complete standalone system or as a slave device to a host MCU, reducing communication stack overhead on the main application processor. ESP32 can interface with other systems to provide Wi-Fi and Bluetooth functionality through its SPI / SDIO or I2C / UART interfaces
ESP32 is the name of the chip that was developed by Espressif Systems. This provides Wi-Fi (and in some models) dual-mode Bluetooth connectivity to embedded devices. While ESP32 is technically just the chip, modules, and development boards that contain this chip are often also referred to as “ESP32” by the manufacturer
ESP32-WROOM-32E is a powerful, generic Wi-Fi + Bluetooth + Bluetooth LE MCU module that targets a wide variety of applications, ranging from low-power sensor networks to the most demanding tasks, such as voice encoding, music streaming, and MP3 decoding.ESP32-WROOM-32E is different from ESP32-WROOM-32UE  in that  ESP32-WROOM-32E has on board Antenna you do not need to connect the antenna externally to the ESP32-WROOM-32D IoT Development Board
When the ESP32 is set as a Wi-Fi station, it can connect to other networks (like your router). In this scenario, the router assigns a unique IP address to your ESP board. You can communicate with the ESP using other devices (stations) that are also connected to the same network by referring to the ESP’s unique IP address
ESP32-WROOM-32E is a low-footprint and entry-level development board that is part of the ESP32 series. This board has a rich peripheral set. The built-in ESP32 pinout is optimized for hassle-free prototyping

Applications:

  1. Smart industrial devices, including Programmable Logic Controllers (PLCs)
  2. Smart medical devices, including wearable health monitors.
  3. Smart energy devices, including HVAC and thermostats.
  4. Smart security devices, including surveillance cameras and smart locks
  5. All IOT Projects

Key Features :

  1.  ESP32-WROOM-32E can be programmed in different programming environments
  2. On board Wi-Fi + Bluetooth + Bluetooth LE MCU connectivity
  3. Use in IoT Projects
  4. Small and compact Dev module
  5. You can connect with a router or your devices
  6. Easy to learn & use
  7. Rapid Prototyping
  8. Flexible and Feature-Rich
  9. Breadboard-Friendly

Technical Specification :

Product  IoT Development Board
CPU Clock Frequency 80 MHz to 240 MHz
Microprocessor Tensilica Xtensa LX6 dual core
Voltage (V) 3.6
Current (mA) 500
ROM 448 KB ROM
SRAM 520 KB SRAM
On Board Ports Wi-Fi + Bluetooth + Bluetooth LE MCU
Operating Temperature (*C) -40 to +85 °C
Shipping Weight 0.01 kg
Shipping Dimensions 8 × 7 × 2 cm

Package Include :

  • 1 x ESP32 WROOM 32E Development Board.
