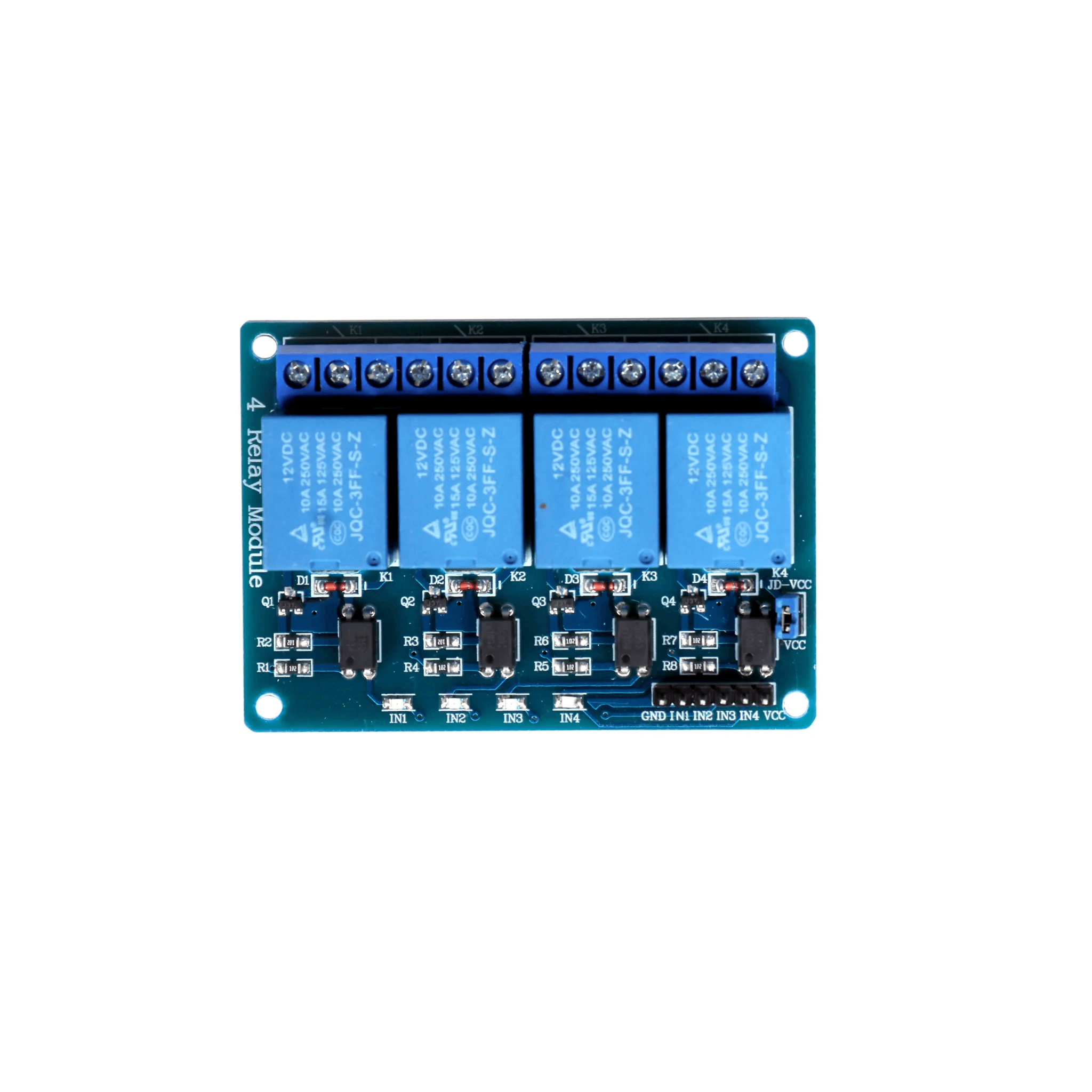

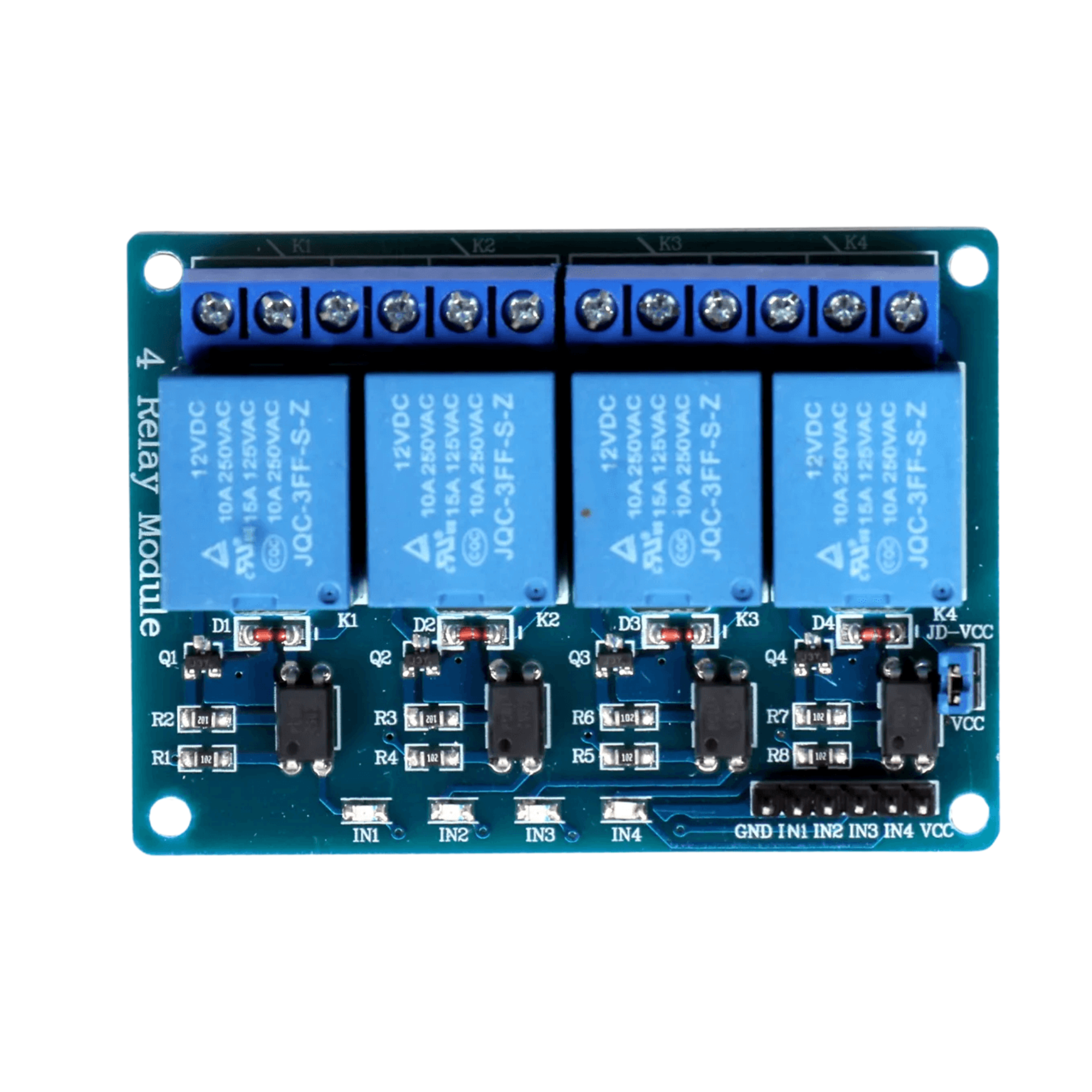

4 Channel Isolated 5V 10A Relay Module

Description :

A 4-channel isolated 5V 10A relay module is a device that typically includes four independent relays, each capable of handling up to 10 amperes of current,

The relay output supports a maximum contact rating of AC250V 10A and DC30V 10A. It can be directly interfaced with a microcontroller using a standard interface. The inclusion of red working status indicators enhances safety during use. This versatile device finds applications in various areas, including MCU control, industrial sectors, PLC control, and smart home systems.

Key Features :

1. One normally closed contact and one normally open contact
2. Triode drive, increasing relay coil
3. High impedance controller pin
4. Pull-down circuit for the avoidance of malfunction
5. Power supply indicator and Control indicator lamp
6. Power supply and relay instructions, lit, the disconnect is off;
7. The input signal, signal, common Terminal and start conducting;
8. Useful for appliance control;
9. DC or AC signal, control, you can control the 220V AC load;
10. There is a normally open and one normally closed contact;
11. The module is compliant with international safety standards, control and load areas isolation trenches.

Technical Specifications :

Package Include :

• 1 x 4 Channel Isolated 5V 10A Relay Module.
