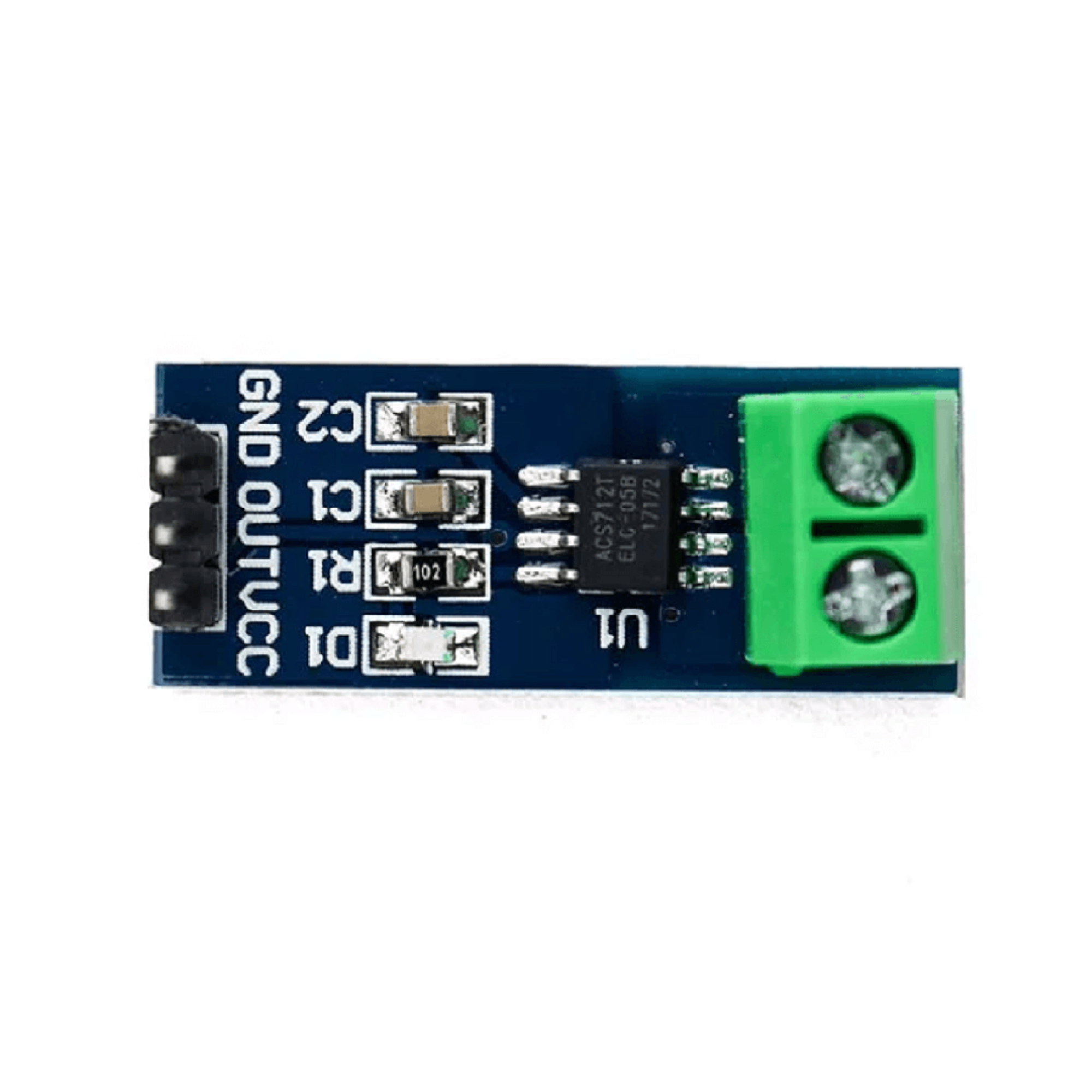

ACS712 5A Current Sensor
ACS712 5A Current Sensor
Anu Electronics

ACS712 5A Current Sensor

Product SKU: SEN000021
Want it delivered by
Available:
Only 50 items in stock
50 items in stock
In stock
Pre-order
Out of stock
Rs. 109.00
Rs. 160.00
Notify me When Available
You will receive an email when the product is available.
  • Description

Description :

The ACS712 is a series of Hall effect-based current sensor modules that can be used to measure the current flowing through a conductor. The ACS712 module with a 5A range is another variant, designed to measure currents up to 5 amperes.

Here are key features and information about the ACS712 5A range current sensor module:

Key Features :

Current Range : The ACS712 module with a 5A range is designed to measure currents up to 5 amperes.
Type of Sensor : It utilizes the Hall effect to measure the magnetic field generated by the current flowing through a nearby conductor.
Output Signal : The ACS712 produces an analog voltage signal proportional to the current being measured. This signal is typically centered at a voltage level of Vcc/2.
Voltage Supply : The module usually operates at a voltage of 5V, and the output signal is referenced to this voltage.
Sensitivity : The sensitivity of the ACS712 is expressed in millivolts per ampere (mV/A). For the 30A range, the sensitivity is typically around  185 mV/A.
Zero Current Output : The output voltage is centered at Vcc/2 when there is no current flow (zero current).
Application : Commonly used in applications such as current monitoring in electronic projects, motor control, power supplies, and energy monitoring where the current can be up to 30A.

Wiring :

ACS712

Arduino
VCC 5v
GND GND
OUT A0

Technical Specification :

Length (mm) 10
Width (mm) 3
Height (mm) 13.5
Weight (gm) 5
Shipping Weight  0.001 kg
Shipping Dimensions 5 x 3 x 5 cm

Package Include :

  • 1 x (ACS712 5A Current Sensor)
