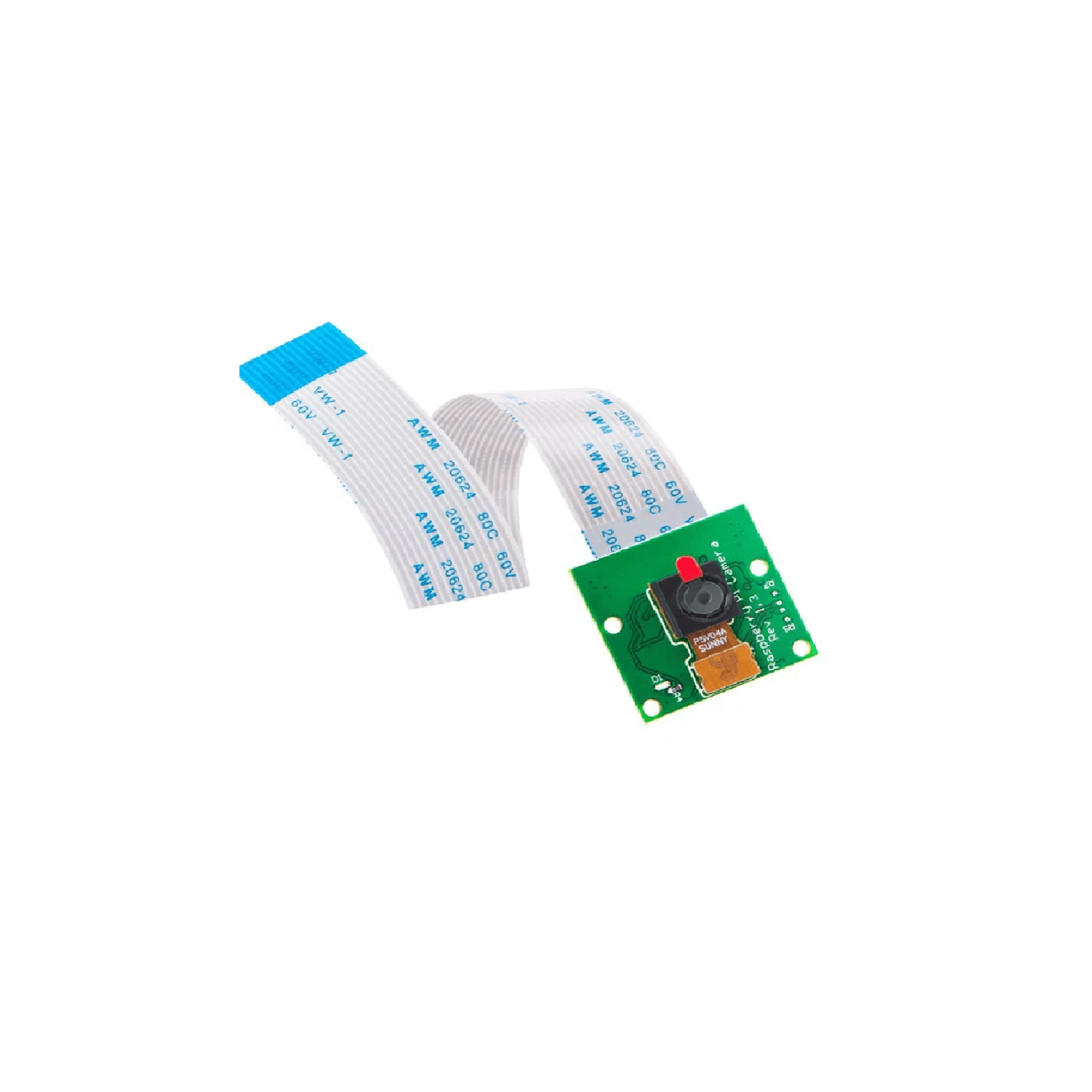

5MP Raspberry Pi Camera Module

Description :

The 5MP Raspberry Pi 3/4 Model B Camera Module Rev 1.3 with Cable equips flexible cable for attaching with Raspberry Pi 3 Model B.
The high-definition 5MP camera delivers outstanding photos but can also shoot video, ideal for drones or CCTV projects. The lightweight camera board allows for it is useful in more practical roles, such as a hidden camera, or even a camera for a Pi phone.
This Raspberry Pi Camera Module is a custom-designed add-on for Raspberry Pi. It attaches to Raspberry Pi by way of one of the two small sockets on the board’s upper surface. This interface uses the dedicated CSI interface, therefore it is designed especially for interfacing to cameras. The CSI bus is capable of extremely high data rates, and it exclusively carries pixel data.

Hardware connection :

1. Soft cable, 90-degree vertical connector, HDMI port next to it. When connecting the contact side facing the HDMI interface.
2.  Tear protective film on the lens
3. Bare boards, pay attention to ESD damage, and beware of static electricity!

Software:

1. RPi firmware and raspi-config have been updated to the camera, do an apt-get update; apt-get upgrade;
2. Raspi-config, select the camera, start RPi firmware camera driver, and then restart
3. Using the command-line programs raspivid and raspistill operate a camera to capture video clips or images
4. To capture video clips need to play with MPlayer
5. How will the data through the network camera live broadcast out:
6. By nc command (ncat – Concatenate and redirect sockets) of the input data of the camera, directly to the output ports of the network redirection.

Key Features :

1. Supported Video Formats: 1080p @ 30fps, 720p @ 60fps and 640x480p 60/90 video
2. Fully Compatible with Raspberry Pi 3 and 4Model B.
3. Small and lightweight camera module.
4. Plug-n-Play camera for Raspberry Pi 3 and 4 Model B.

Technical Specification :

Package Include :

• 1 x (5MP Raspberry Pi Camera Module)
