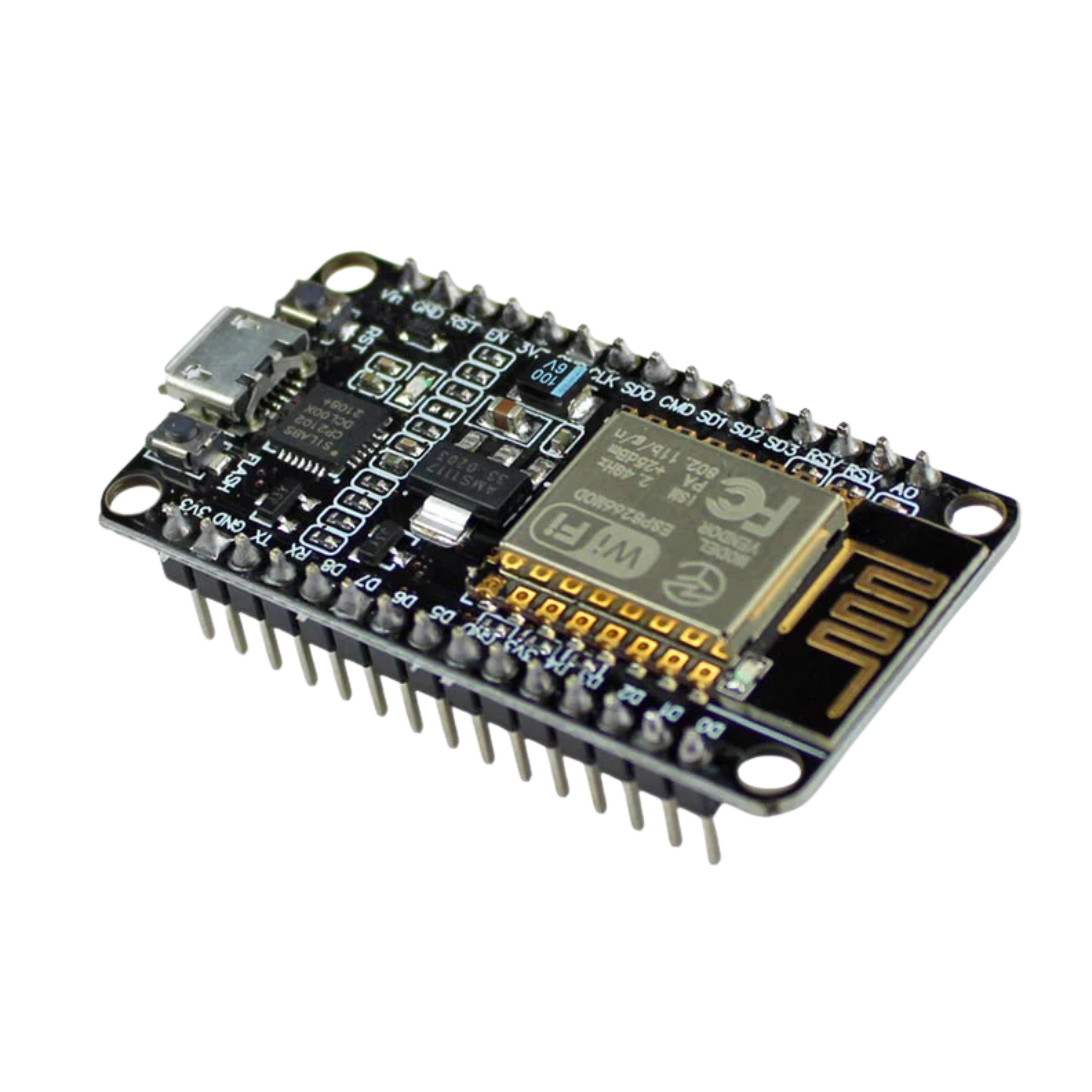

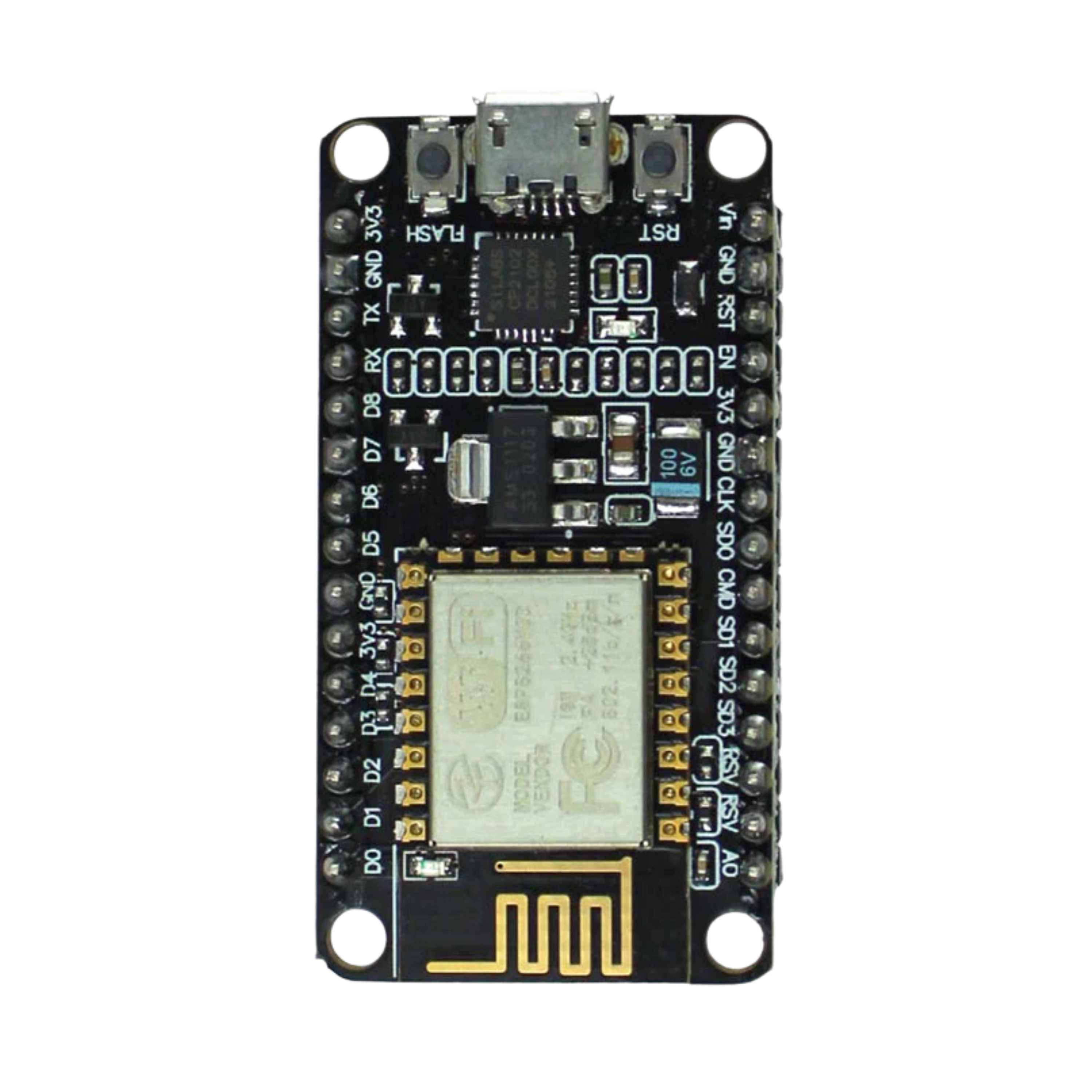

NodeMCU ESP8266
NodeMCU ESP8266
Description :
The NodeMCU ESP8266 is a popular open-source development board based on the ESP8266 Wi-Fi module. It is designed for Internet of Things (IoT) applications and prototyping. Here are some key points about NodeMCU ESP8266:
ESP8266 Module: The NodeMCU board is built around the ESP8266 Wi-Fi module, which is a low-cost, low-power, and highly integrated Wi-Fi chip. It enables wireless communication and makes it easy to connect your projects to the internet.
Key Features :
1.Integrated low-power 32-bit CPU
2.Arduino-like hardware IO
3.11 b/g/n Wi-Fi Direct (P2P), soft-AP
4.Integrated TCP/IP protocol stack
5.Open-source, Interactive, Programmable, Low-cost, Simple, Smart, Wi-Fi-enabled
6.Advanced API for hardware IO, which can dramatically reduce the redundant work for configuring and manipulating hardware.
7.Code like Arduino, but interactively in Lua script.
8.Nodejs style network API
9.Event-driven API for network applications,
10.Has an onboard 3.3V regulator to ensure enough power to function as your go-to WiFi chip!
11.Easy to use breadboard friendly form factor
12.Embeds logic level converter circuits
13.Less than WI-FI MCU ESP8266 integrated and easy to prototyping development kit.
14.We provide the best platform for IoT application development at the lowest cost.
15.Integrated TR switch, balun, LNA, power amplifier, and matching network
16.Integrated PLL, regulators, DCXO, and power management units
17.Onboard USB to serial chip to easily program and upload codes from the Arduino IDE
18.which facilitates developers writing code running on a 5mm*5mm sized MCU in Nodejs style.
19.Greatly speed up your IOT application development process.
20.Easy access to the GPIO pins for easy prototyping.
21.Voltage Regulator / Converter, excellent DC to DC conversion, super-efficient.
22.Lowest cost WI-FI.
Technical Specification :
Built-in Flash | 32Mbit |
Peripheral interface | UART/SPI/I2C/SDIO/GPIO/ADC/PWM |
WiFi protocol | IEEE 802.11 b/g/n |
Frequency range | 2.4G ~ 2.5G (2400M ~ 2483.5M) |
WIFI mode | Station / SoftAP / SoftAP+Station |
Power supply | 5V |
Logic level | 3.3V |
Dimensions (mm) | 48.3 x 25.5 x 11.7 |
Weight (gm) | 7 |
Shipping Weight (kg) | 0.01 kg |
Shipping Dimensions | 13 x 8 x 3.5 cm |
Package Include :
- 1 x NodeMCU ESP8266.
