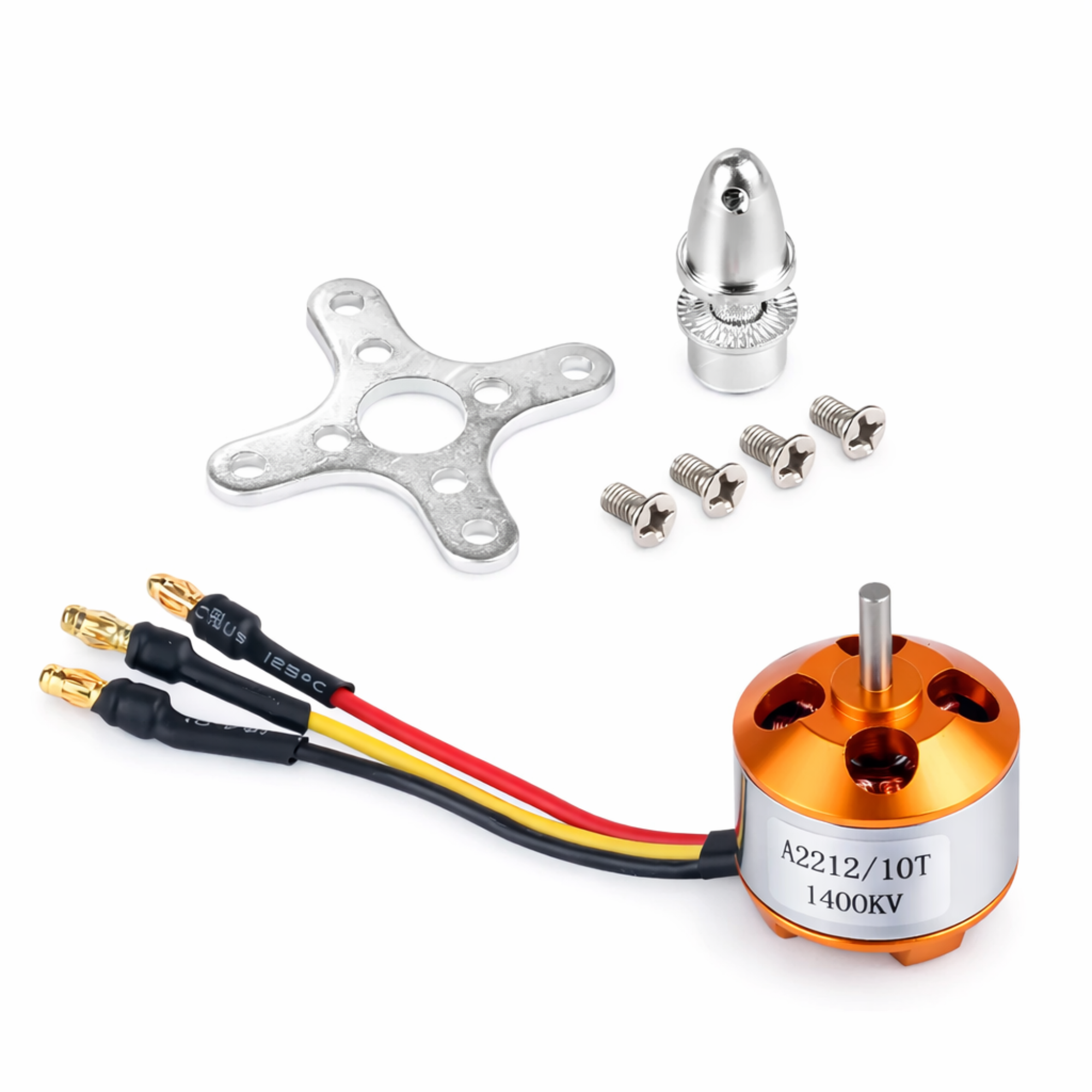

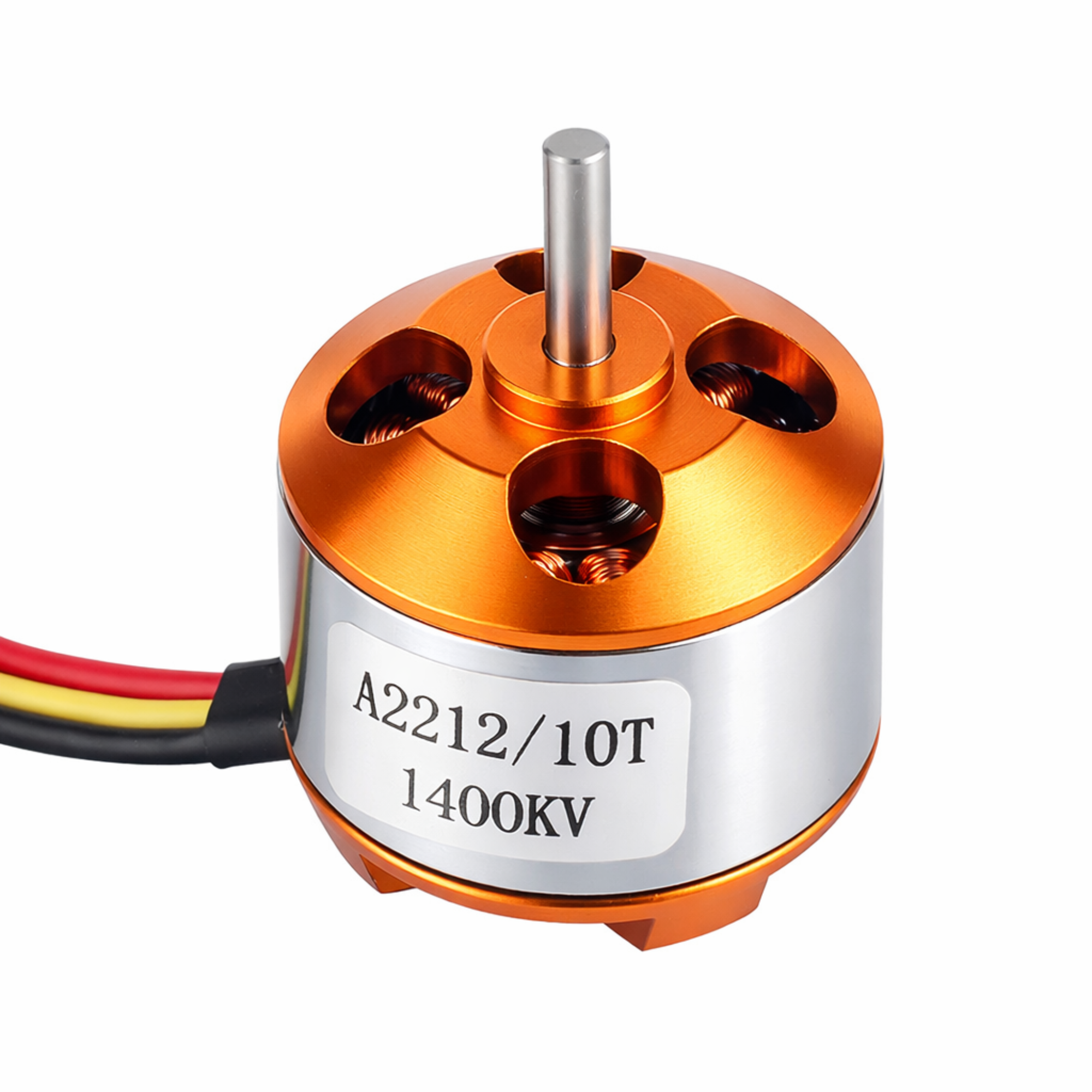

A2212 10T 1400KV BLDC Brushless Motor for RC Drone, UAV & DIY Projects

The A2212 10T 1400KV Brushless Motor is a high-performance BLDC outrunner motor designed for drones, RC aircraft, robotics, and DIY electronics projects. With its 1400KV rating, it delivers an excellent balance of speed, thrust, and efficiency, making it a popular choice for quadcopters, fixed-wing aircraft, and STEM learning projects. Compatible with 2S–3S LiPo batteries and commonly paired with a 20A–30A ESC, this motor provides smooth operation, reliable power delivery, and long service life. Its lightweight construction and high torque output enable stable flight performance and efficient propulsion for a wide range of applications.

Key Features

• 1400KV outrunner BLDC motor for high-speed applications
• Compatible with 2S–3S LiPo batteries
• Lightweight and durable construction
• High efficiency with low power consumption
• Suitable for drones, quadcopters, RC planes, UAVs, and robotics
• Supports common propellers such as 8×4.5, 9×4.7, and 10×4.5
• Works with 20A–30A Electronic Speed Controllers (ESCs)
• Provides strong thrust and smooth operation with minimal noise


Specifications

• Model: A2212 10T
• Motor Type: Brushless DC Outrunner
• KV Rating: 1400KV
• Operating Voltage: 7.4V–11.1V (2S–3S LiPo)
• Maximum Current: Up to 16A
• Shaft Diameter: 3.17 mm
• Weight: Approx. 50–70 g
• Recommended ESC: 20A–30A
