Antenna - GSM Sticker With Wire

GSM Sticker Antenna with 3 m Cable and SMA Male Connector

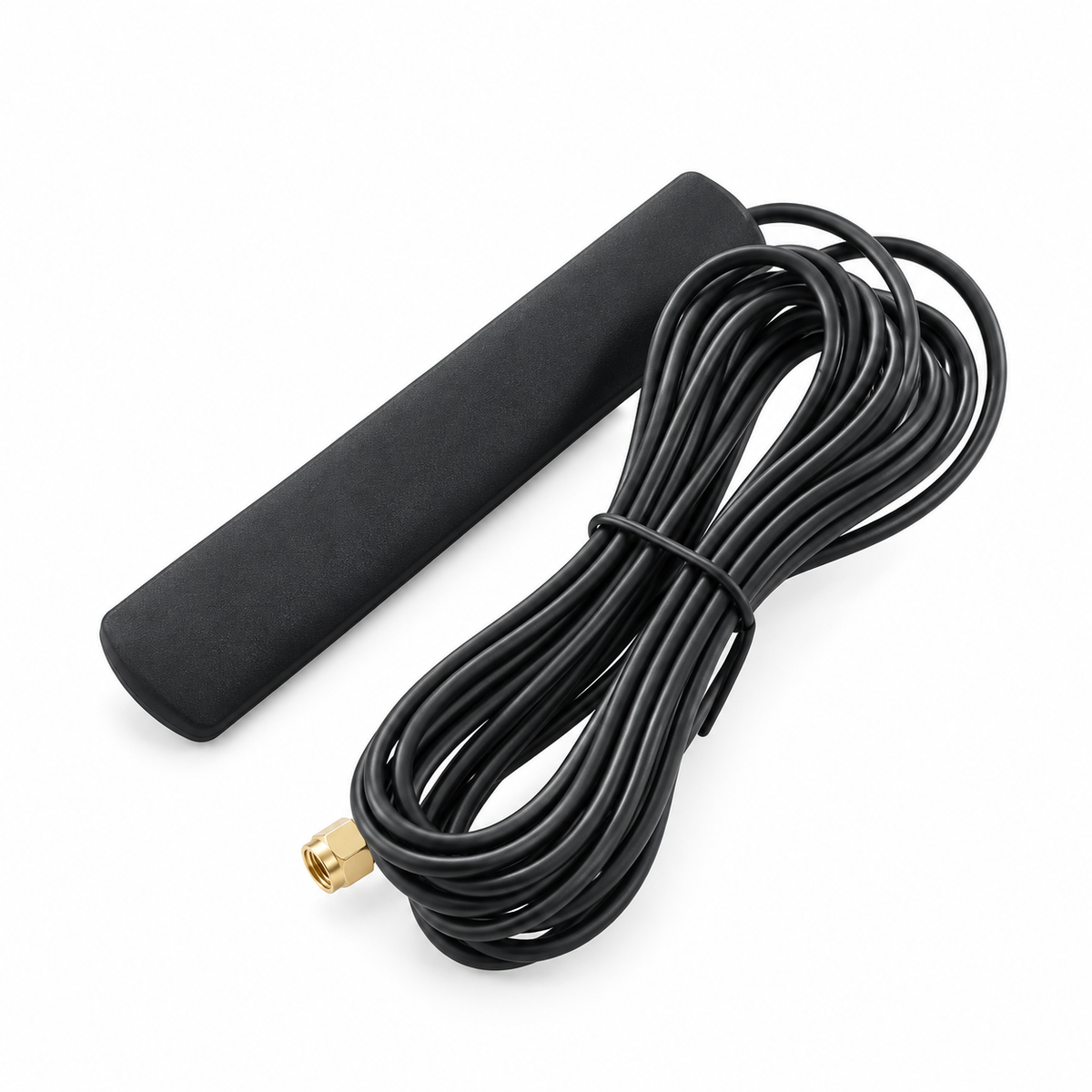

The Antenna - GSM Sticker With Wire is an adhesive-mount antenna for compatible embedded cellular devices. It supports the 850, 900, 1800 and 1900 MHz GSM bands and comes with a 3 m RG174 cable terminated in a standard SMA male connector. Its slim black ABS housing and 3M adhesive backing allow the antenna to be positioned separately from the connected device.

Key Features

• Quad-band GSM coverage: Specified for 824–960 MHz and 1710–1990 MHz operation.

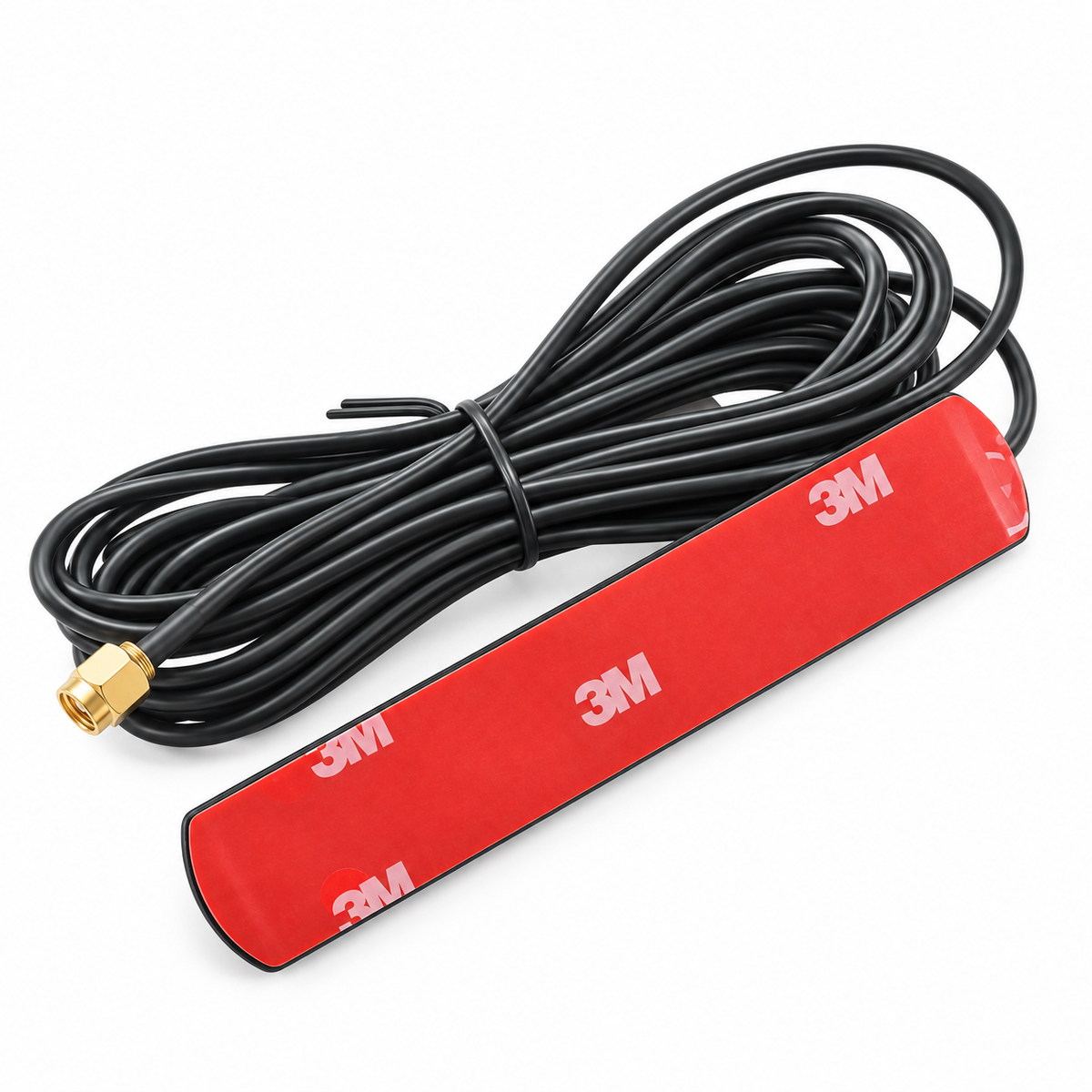

• Adhesive mounting: The 3M backing provides a mounting option without a separate antenna bracket.
• 3 m cable: Allows flexibility when choosing a mounting position within reach of the device.
• Standard SMA male connection: Fits equipment with a compatible standard SMA female antenna port.
• Slim construction: A 115 × 22 × 4 mm black ABS housing for installations with limited space.

Technical Specifications

Applications

Suitable for consideration in GSM/GPRS modems, cellular telemetry equipment, remote-monitoring devices and embedded communication projects that match the specified frequency bands, impedance and connector. Check the equipment’s antenna requirements before ordering.

Installation

Check reception at the proposed mounting position before removing the adhesive liner. Use a clean, dry surface suitable for the adhesive, route the cable without sharp bends, and connect it to a compatible antenna port. Final performance depends on placement, the surrounding materials, the radio equipment and network coverage.

Frequently Asked Questions

How long is the antenna cable?

The supplier datasheet specifies a 3 m RG174 cable.

Which connector does it use?

It uses a standard SMA male connector. Check both the connector type and centre contact on your equipment; SMA and RP-SMA are not interchangeable connector specifications.

Is this a 5 dBi antenna?

No. The referenced model is specified at 3.5 dBi. It is distinct from separately listed 5 dBi sticker antenna models.

Can it be used for 2.4 GHz Wi-Fi or all 4G networks?

Do not assume compatibility. The supplier’s summary mentions 2.4 GHz, but its detailed electrical ranges cover 824–960 MHz and 1710–1990 MHz only. Confirm suitability for any frequency or service outside the stated GSM application.

Will it guarantee stronger reception?

No antenna guarantees a fixed improvement or communication range. Test it with your equipment in the intended location.
