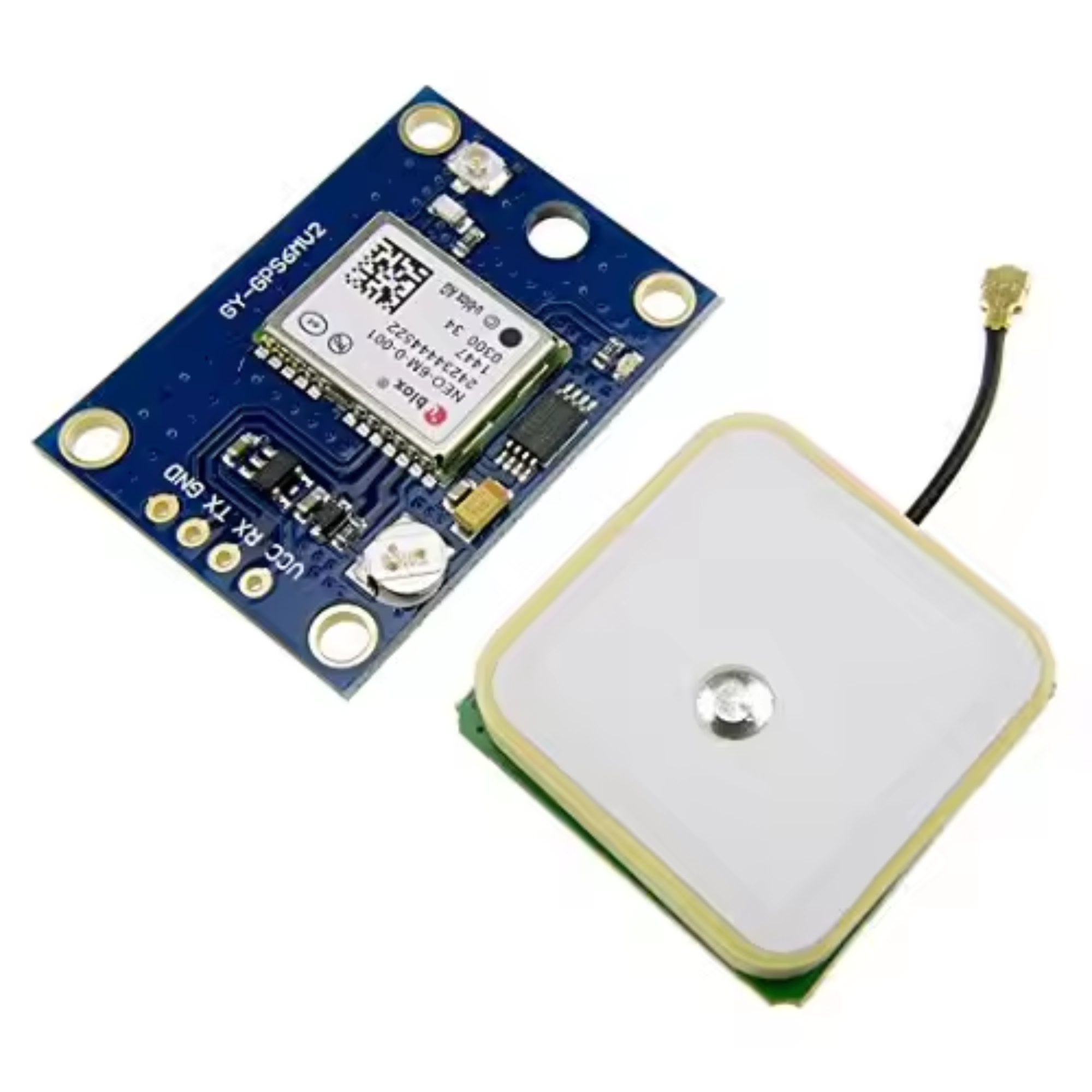

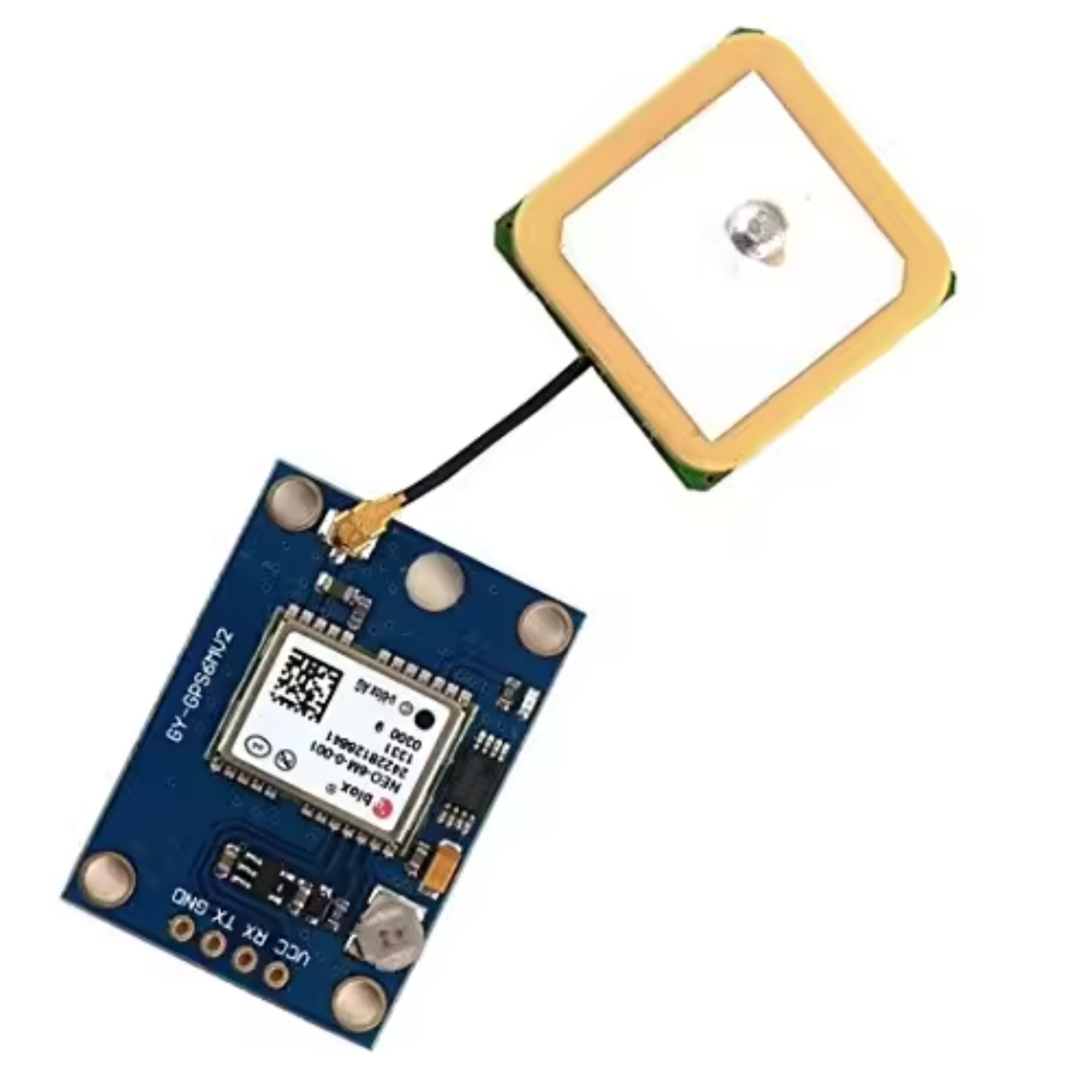

GY-GPS6MV2 NEO-6M GPS Module with External Ceramic Antenna

The GY-GPS6MV2 NEO-6M GPS Module is a compact and reliable GPS receiver designed for accurate real-time positioning, navigation, and timing applications. Powered by the trusted u-blox NEO-6M GPS chipset, this module delivers fast satellite acquisition and precise location data, making it ideal for Arduino, ESP32, STM32, Raspberry Pi, flight controllers, robotics, IoT, and vehicle tracking projects. It features an external high-gain ceramic antenna for improved satellite reception, an onboard backup battery to retain GPS data, and EEPROM for storing configuration settings even after power is removed. Supporting a wide 3V–5V operating voltage and UART TTL communication, the module integrates easily into a variety of embedded systems.

Key Features

• Powered by the u-blox NEO-6M GPS receiver
• High-performance external ceramic patch antenna for stronger GPS signal reception
• 3V–5V DC operating voltage with onboard voltage regulator
• UART TTL serial interface for easy microcontroller integration
• Default 9600 bps baud rate
• Onboard EEPROM stores configuration settings
• Built-in backup battery retains satellite data for faster startup
• LED status indicator for GPS signal and fix status
• Compact design with mounting holes for secure installation
• Compatible with Arduino, ESP32, STM32, Raspberry Pi, APM, Pixhawk, and other embedded platforms
