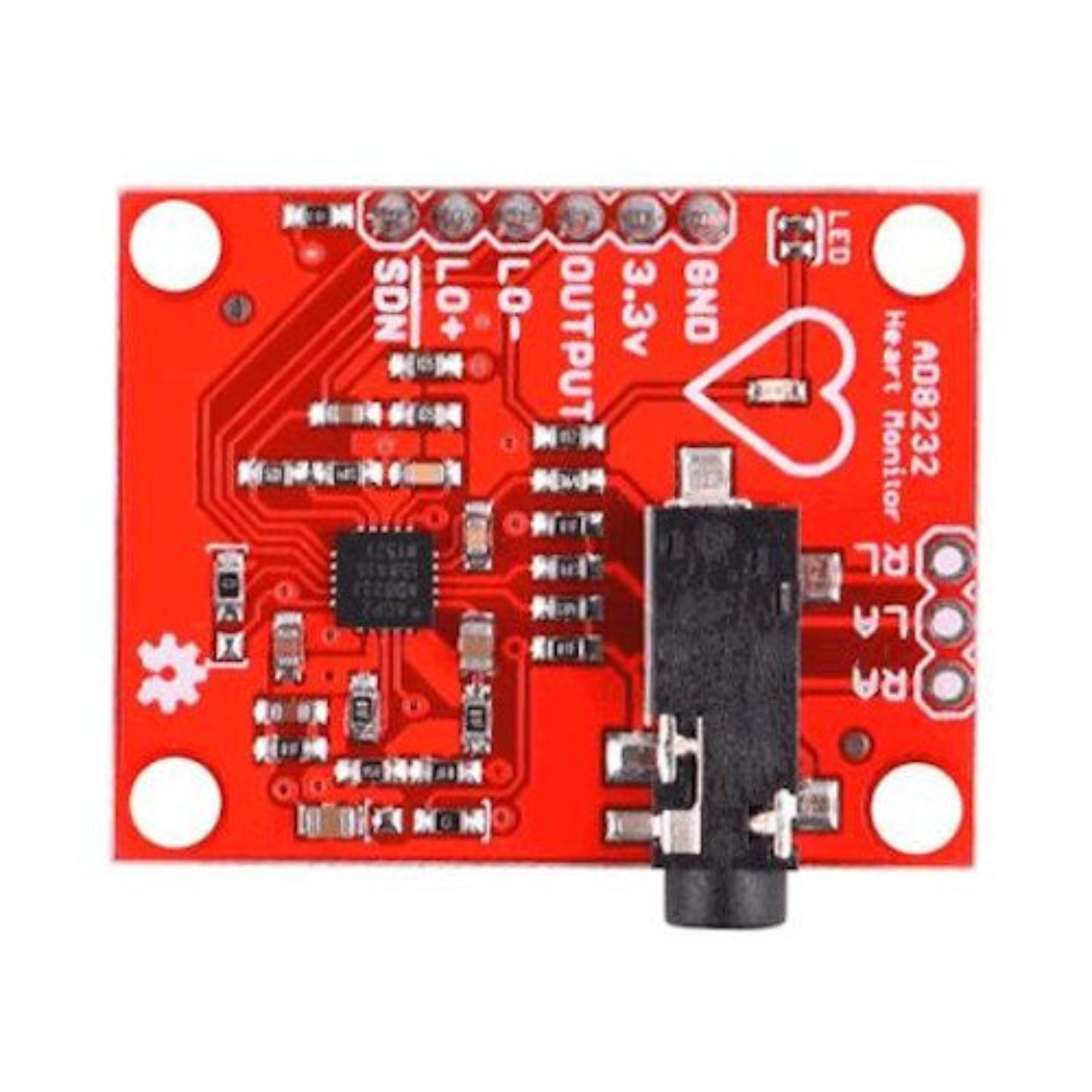

AD8232 ECG Sensor Module Heart Rate Monitor

Description :

The AD8232 ECG (Electrocardiogram) sensor module is commonly used in heart rate monitor kits to measure the electrical activity of the heart. Here's an overview of the AD8232 module and how it can be used in a heart rate monitor kit:

The AD8232 module is designed to capture the electrical signals generated by the heart during the cardiac cycle. It can be used to measure heart rate and monitor the heart's electrical activity.

Key Features :

• Single Lead Heart Rate Monitor: Often used for basic heart rate monitoring with a single lead configuration.
• Filtering and Signal Conditioning: The module includes filtering and signal conditioning components to process the raw ECG signal.
• Amplification: It amplifies the weak electrical signals from the body to make them suitable for further processing.

• Pads for Electrodes: Connects to skin electrodes (typically three: two for measuring and one as a reference).
• Preamplifier Circuitry: Amplifies the raw ECG signal.
• Filtering: Filters out noise and interference from the signal.
• Output Pins: Provide the conditioned and amplified ECG signal.

Connection :

• Connect the ECG module to a microcontroller or development board (e.g., Arduino) using analog input pins.
• Electrodes are attached to specific parts of the body (chest, wrists) to capture the heart's electrical signals.

Applications:

• Basic heart rate monitoring.
• Fitness trackers.
• Biofeedback devices.
• Medical research and prototyping.

Technical Specification :

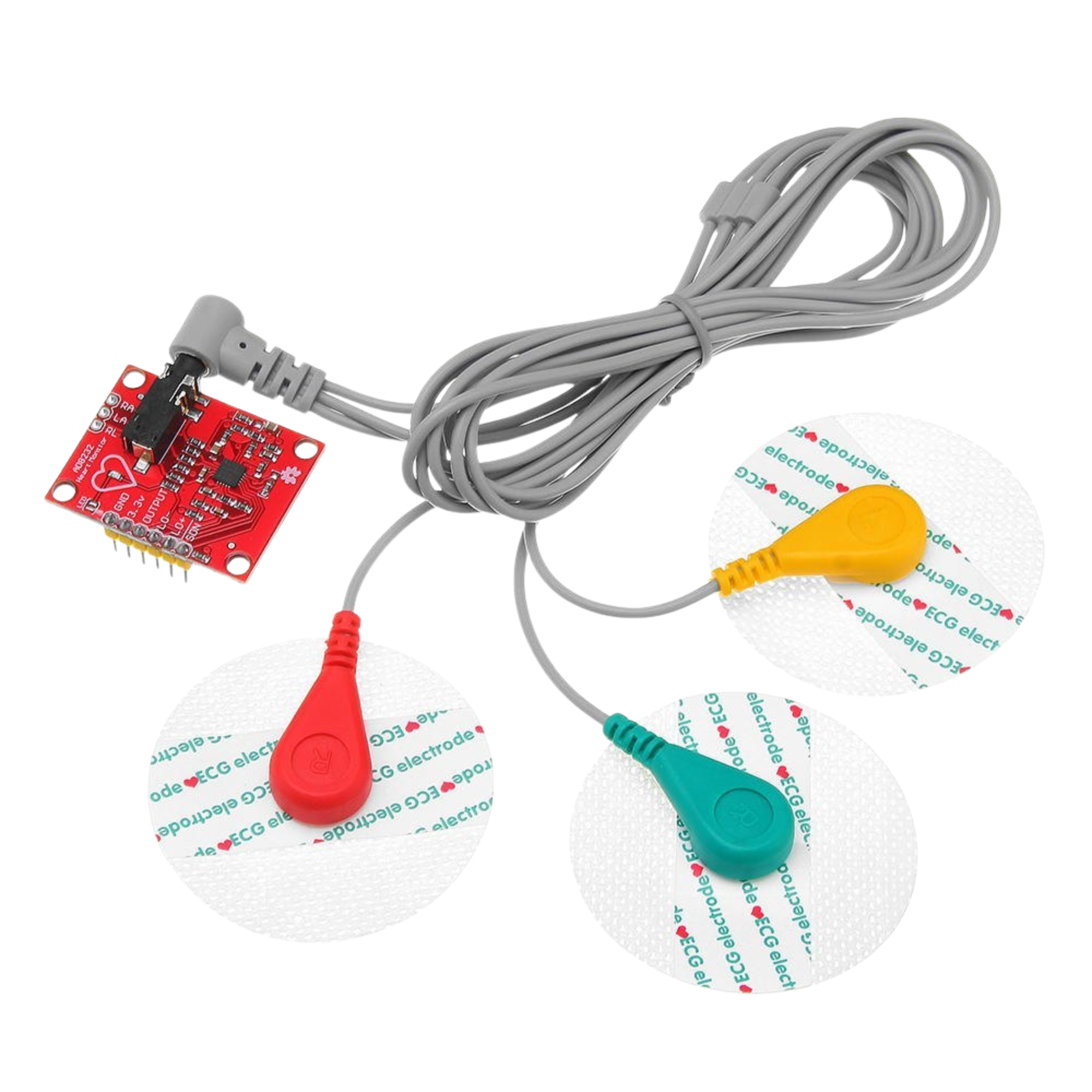

Package Include :

• 1 x AD8232 ECG sensor module

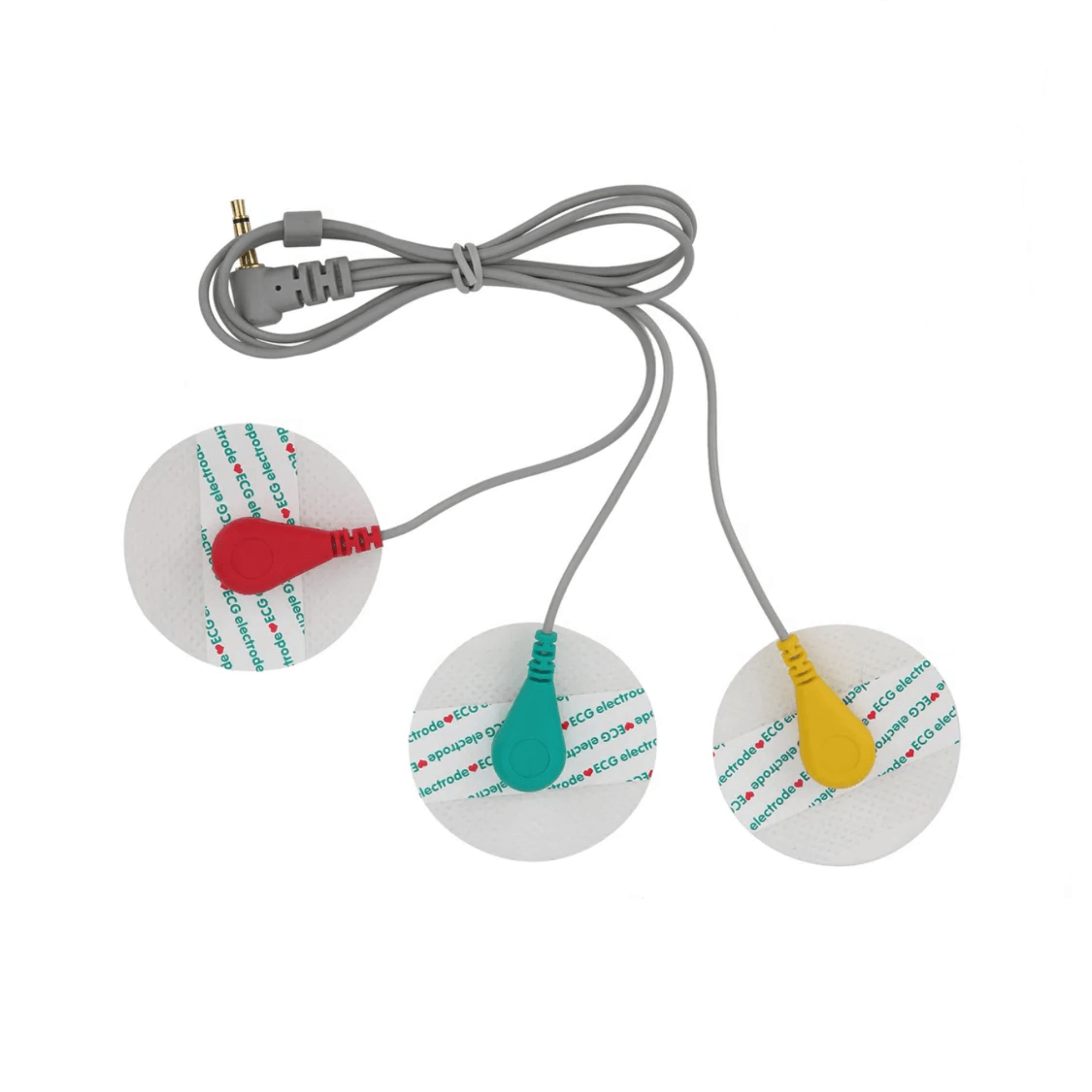

• 1 x Sensor Cable
• 1 x Electrode Pad
