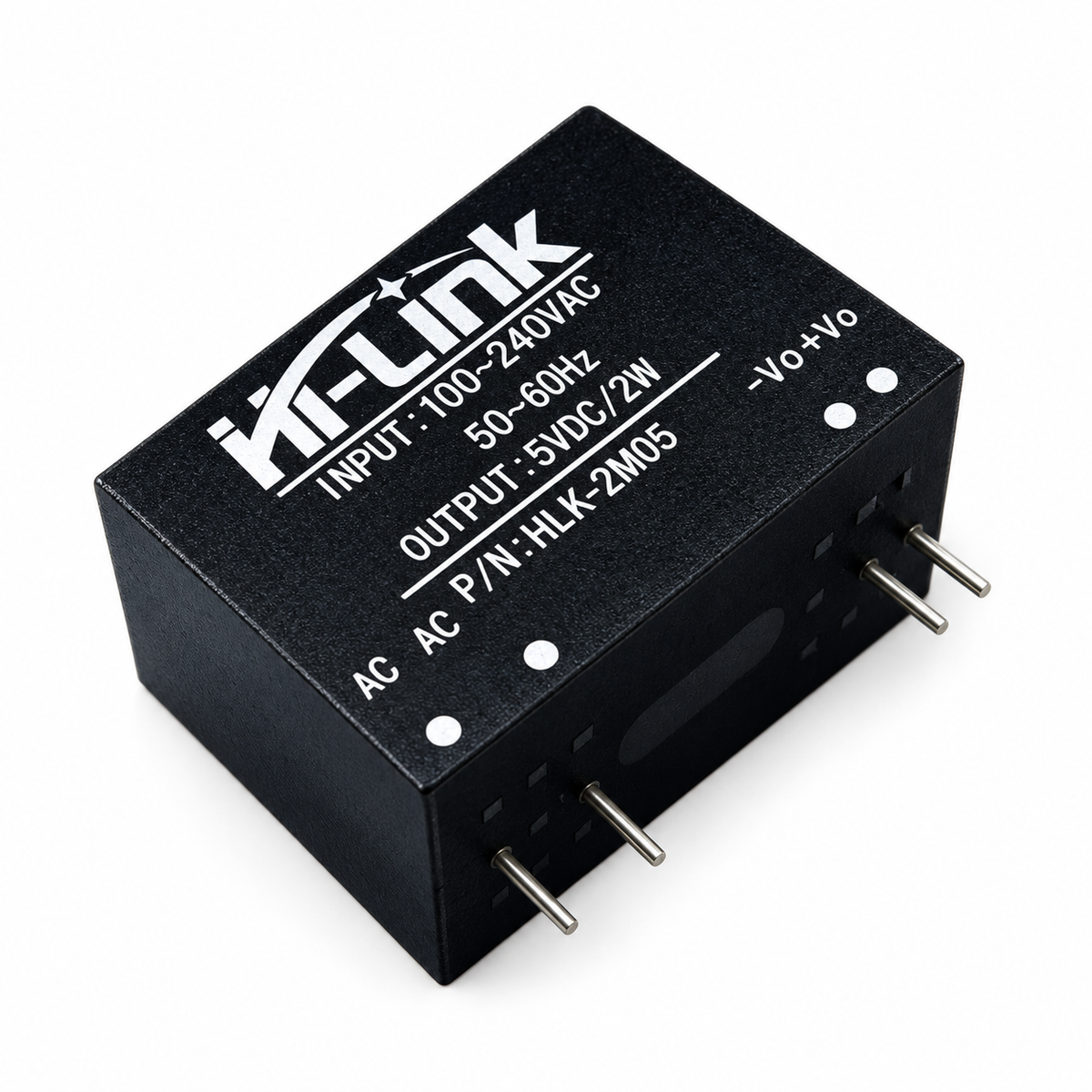

Hi-Link HLK-2M05 AC-DC Power Module 5 V 2 W
- 90–245 VAC in, 5 V DC out
- 400 mA (2 W)
- 3000 VAC isolation
- Tiny 30 × 16 mm footprint
- Short-circuit protected
- Description
The Hi-Link HLK-2M05 is the smallest 5 V module in the Hi-Link range: an isolated AC-DC converter that turns mains AC into a regulated 5 V at up to 400 mA. Its 30 × 16 mm footprint fits inside switch boxes and small sensor enclosures.
Specifications
| Input | 90–245 VAC |
|---|---|
| Output | 5 V DC, 400 mA max (2 W) |
| Isolation | 3000 VAC input to output |
| Ripple and noise | About 50 mV p-p |
| Efficiency | About 70% |
| Protection | Short-circuit and over-current, self-recovering |
| Size | 30 × 16 × 19 mm, PCB mount |
| Operating temperature | −25 to +60 °C |
Typical uses
- Mains-powered PIR or door sensors with a low-power microcontroller
- Standby supply for a smart switch (add a 3.3 V regulator for ESP modules)
Choosing the right module
400 mA is enough for an ATmega or ESP8266 in light use, but not for an ESP32 with Wi-Fi peaks plus relays. For that, use the HLK-10M05 (5 V, 2 A).
Safety
This module connects to mains voltage, which can be lethal. Fit a fuse on the AC input, keep wide spacing between the AC and DC sides of your PCB, enclose the finished circuit, and never touch it while powered.
What's included
- 1 × Hi-Link HLK-2M05 module
