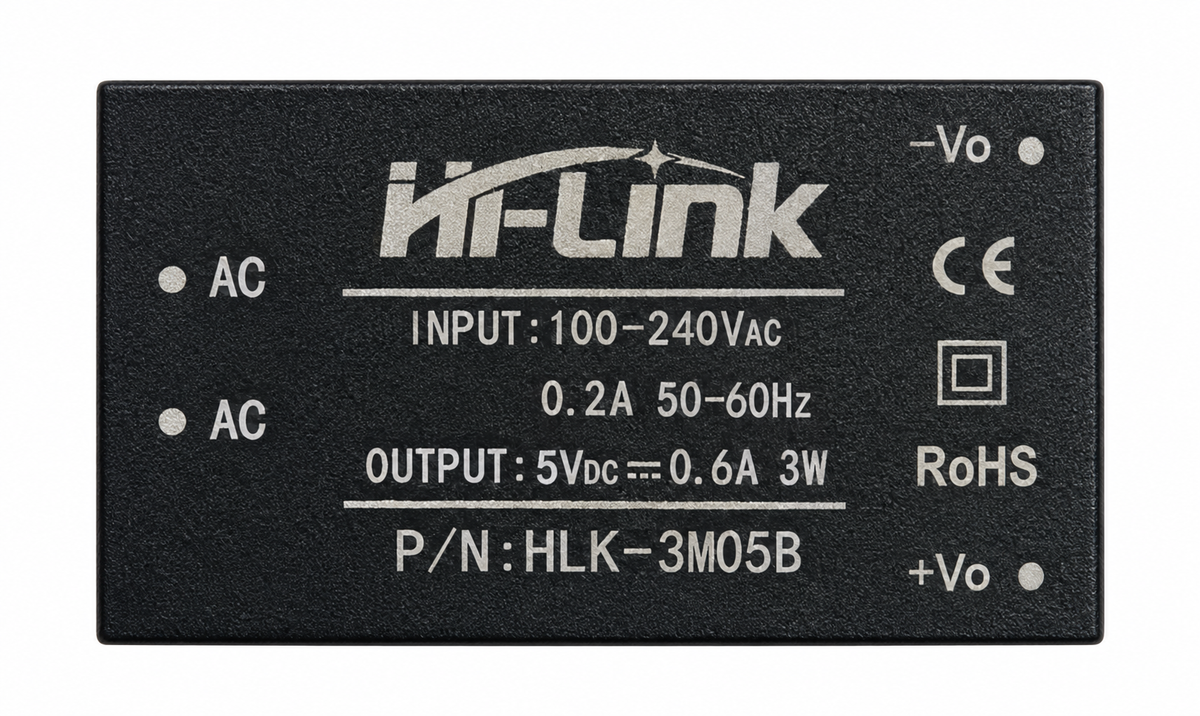

Hi-Link HLK-3M05B AC-DC Power Module 5 V 3 W
Product SKU: ANU-HLK3M05B
Available:
Only a few left in stock
- 85–265 VAC in, 5 V DC out
- 600 mA (3 W)
- 3000 VAC isolation, potted case
- Under 0.1 W no-load power
- Short-circuit protected
Rs. 258.00
- Description
The Hi-Link HLK-3M05B is a potted, isolated AC-DC module that delivers a regulated 5 V at up to 600 mA from mains AC. It is a newer 3 W part with the same output rating as the popular HLK-PM01, in a 34.8 × 20.5 mm through-hole package.
Specifications
| Input | 85–265 VAC |
|---|---|
| Output | 5 V DC, 600 mA max (3 W) |
| Isolation | 3000 VAC input to output |
| Ripple and noise | About 50 mV p-p |
| Efficiency | About 80% |
| No-load power | Under 0.1 W |
| Protection | Short-circuit and over-current, self-recovering |
| Size | 34.8 × 20.5 × 15 mm, through-hole |
| Operating temperature | −25 to +60 °C |
Typical uses
- ESP8266 or Arduino Nano based smart plugs and switches
- 5 V supply for a single relay module and a small sensor
Practical notes
- Keep total capacitance on the 5 V output under 220 µF; larger capacitors can stop the module starting up.
Safety
This module connects to mains voltage, which can be lethal. Fit a fuse on the AC input, keep wide spacing between the AC and DC sides of your PCB, enclose the finished circuit, and never touch it while powered.
What's included
- 1 × Hi-Link HLK-3M05B module
