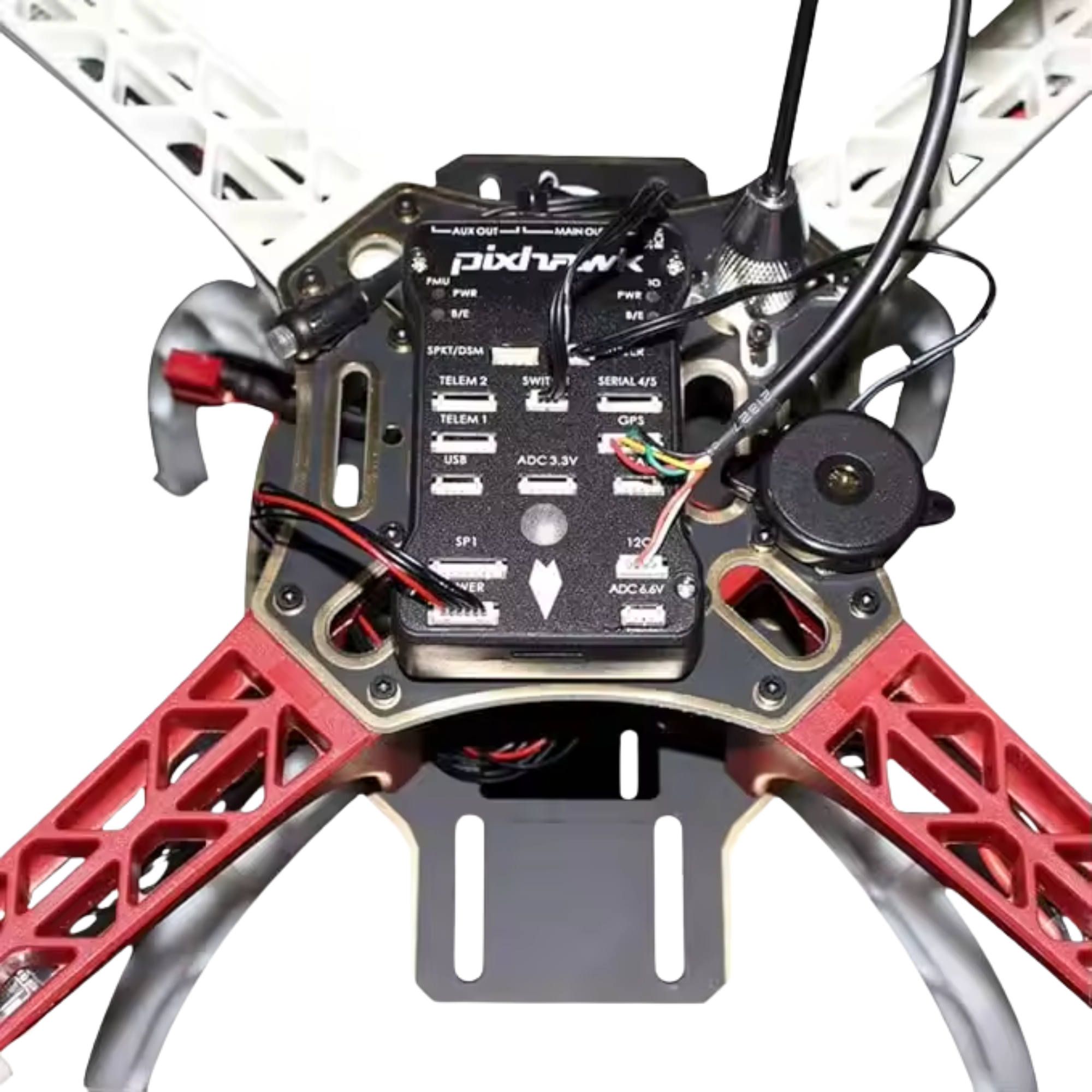

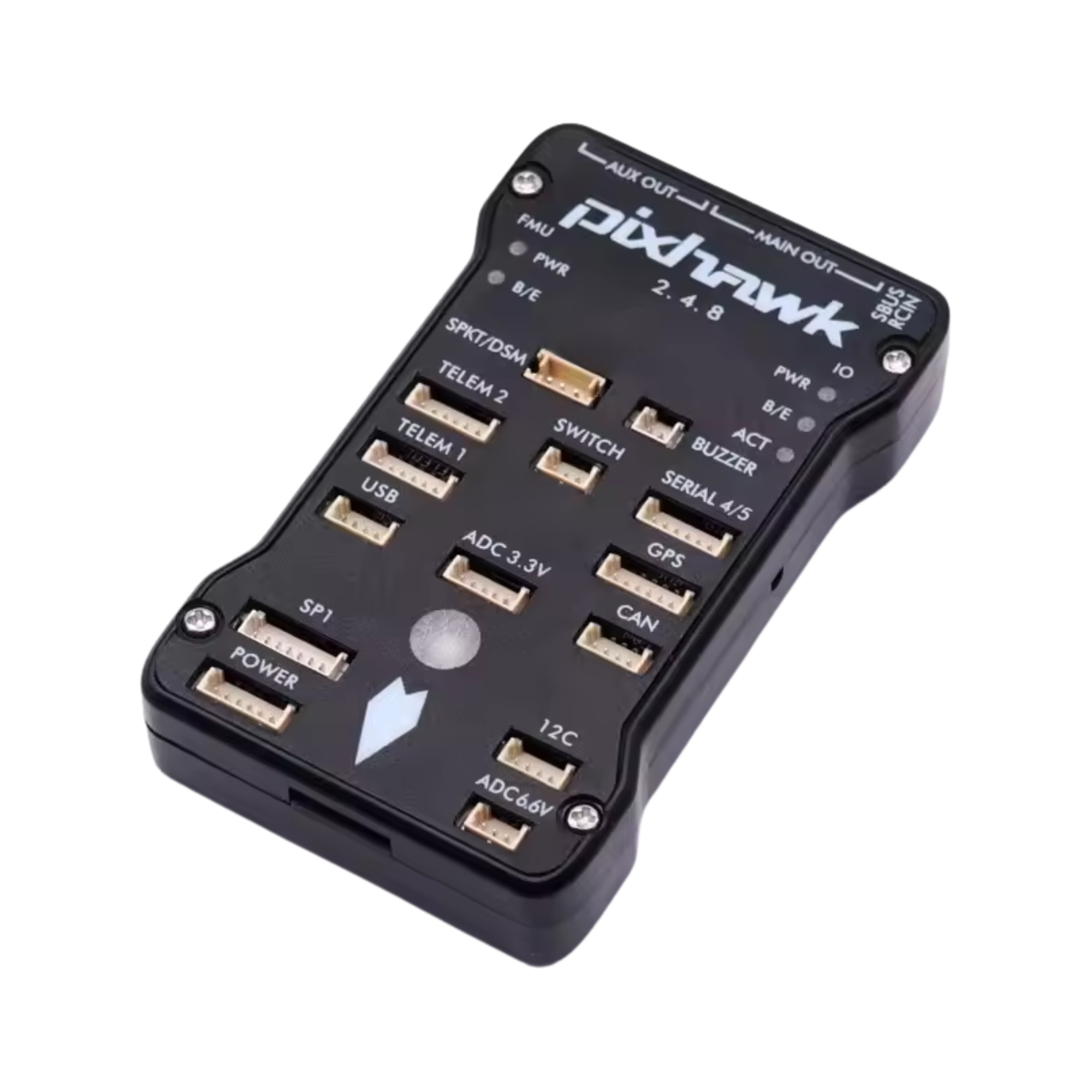

Pixhawk PX4 Autopilot PIX 2.4.8 32-Bit Flight Controller

The Pixhawk PX4 Autopilot PIX 2.4.8 is a professional-grade 32-bit flight controller designed for multirotor drones, fixed-wing aircraft, VTOL platforms, rovers, and other autonomous vehicles. Built around a high-performance STM32F427 Cortex-M4 processor with an integrated failsafe co-processor, it delivers reliable flight control, precise navigation, and support for advanced autonomous missions.

Compatible with PX4 and ArduPilot firmware, the Pixhawk 2.4.8 offers multiple communication interfaces for seamless integration with GPS modules, telemetry radios, companion computers, RC receivers, and additional sensors. It supports mission planning, waypoint navigation, return-to-home, altitude hold, loiter mode, autonomous take-off and landing, and comprehensive flight data logging.

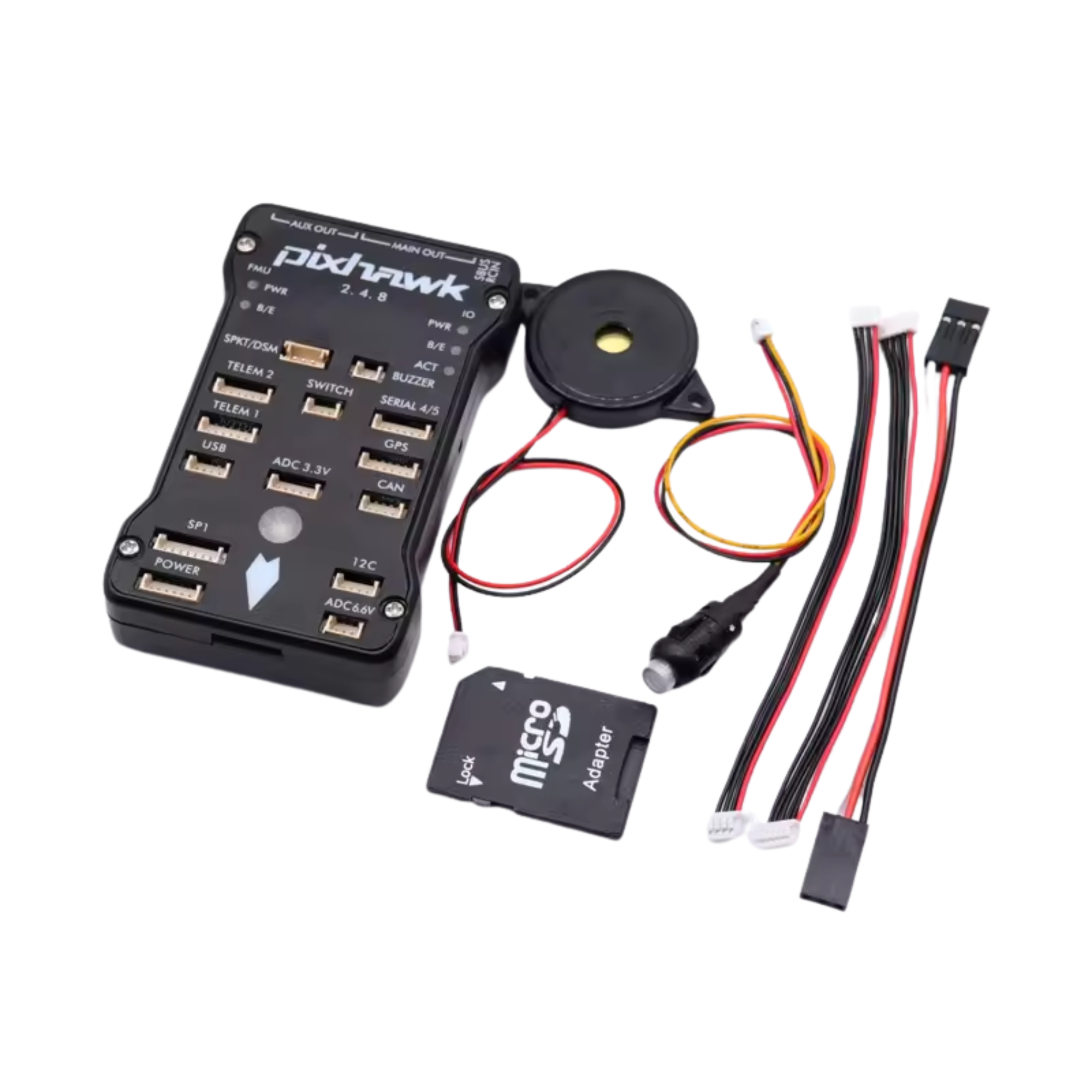

With integrated high-precision IMU sensors, gyroscope, accelerometer, magnetometer, and barometer, the controller provides accurate attitude estimation and stable flight performance. The included safety switch, buzzer, and connection cables simplify installation while enhancing operational safety.

Whether you're building a DIY drone, UAV research platform, aerial mapping system, agricultural drone, or autonomous robotics project, the Pixhawk PX4 2.4.8 offers a dependable and feature-rich flight control solution.

Key Features

• 32-bit STM32F427 Cortex-M4 processor with hardware floating-point unit
• Dedicated STM32F103 failsafe co-processor for enhanced reliability
• Compatible with PX4 and ArduPilot firmware
• Supports multirotor, fixed-wing, VTOL, helicopter, rover, and custom UAV platforms
• Integrated gyroscope, accelerometer, magnetometer, and high-precision barometer

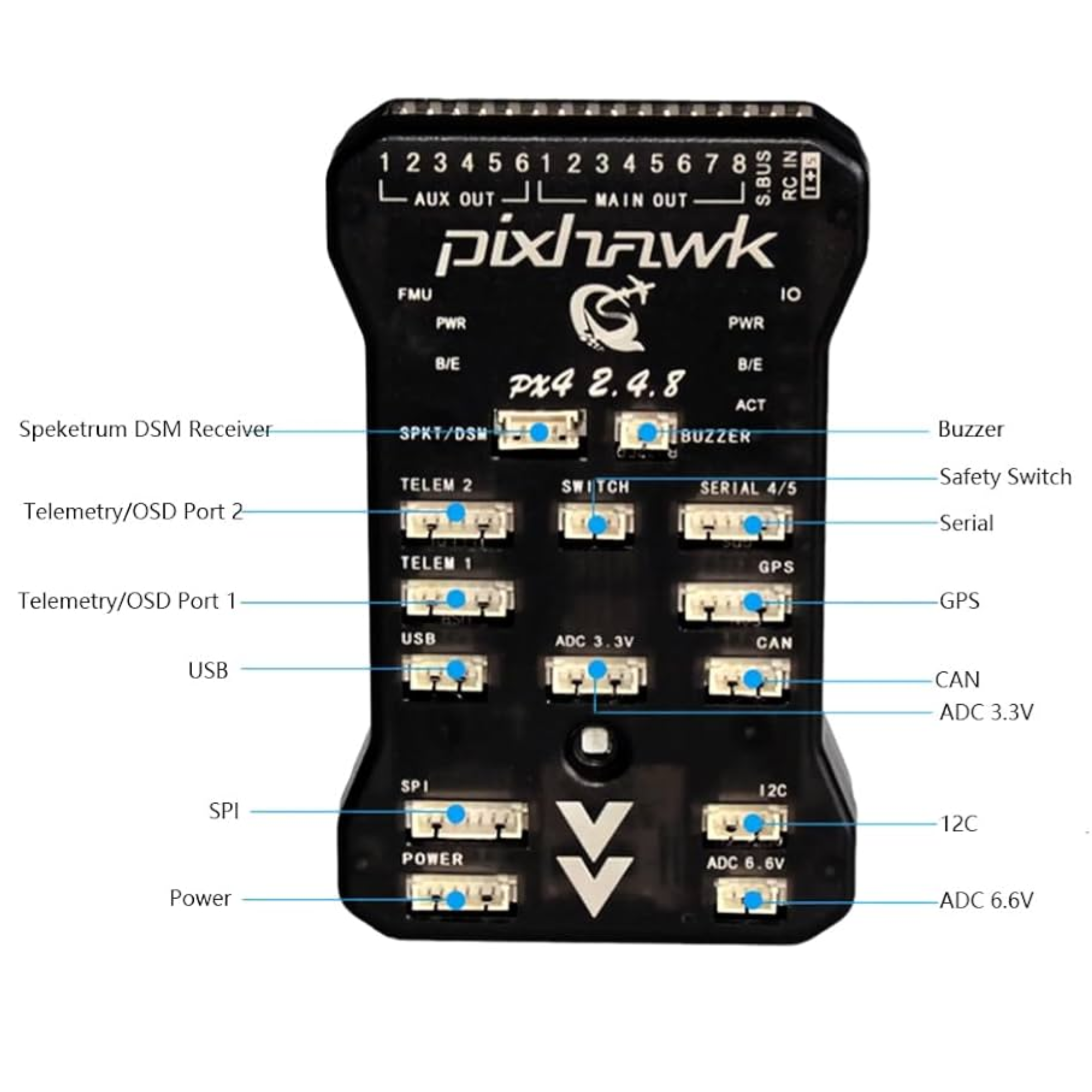

• Multiple interfaces including UART, CAN, I2C, SPI, PPM, SBUS, RSSI, and Micro USB
• MicroSD card support for flight log recording
• Supports GPS, telemetry modules, companion computers, and external peripherals
• Ideal for autonomous navigation, waypoint missions, aerial surveying, research, and drone development

Specifications

• Model: Pixhawk PIX 2.4.8
• Main Processor: STM32F427 Cortex-M4 (32-bit)
• Failsafe Processor: STM32F103
• Clock Speed: 168 MHz
• Flash Memory: 2 MB
• RAM: 256 KB
• Sensors: 3-Axis Gyroscope, 3-Axis Accelerometer, Magnetometer, Barometer
• Interfaces: UART, CAN, I2C, SPI, PPM, SBUS, RSSI, ADC, Micro USB
• Data Logging: MicroSD Card Supported
• Firmware Compatibility: PX4, ArduPilot
• Applications: Quadcopters, Hexacopters, Octocopters, Fixed-Wing Aircraft, VTOL, Helicopters, Rovers, UAV Research Projects
