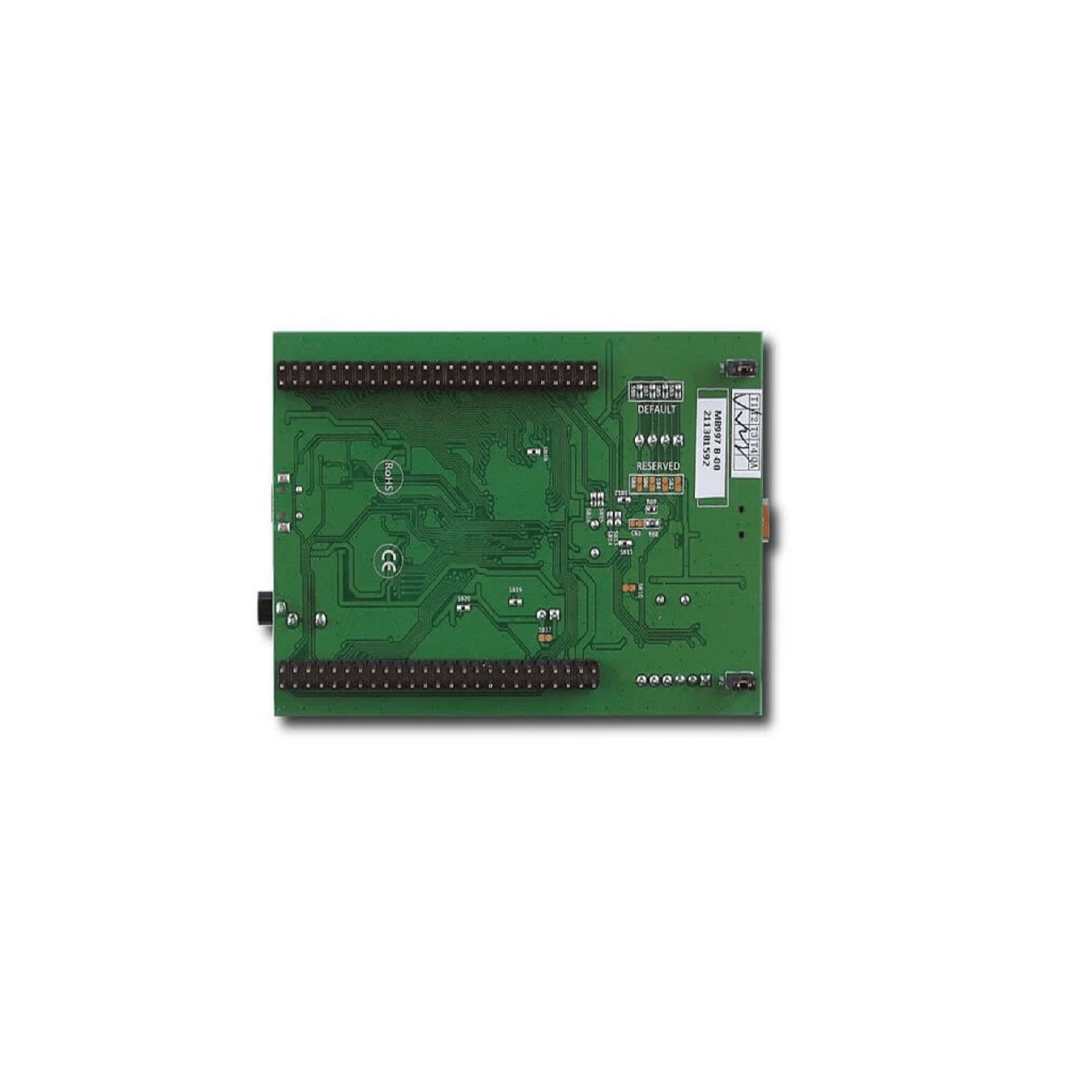

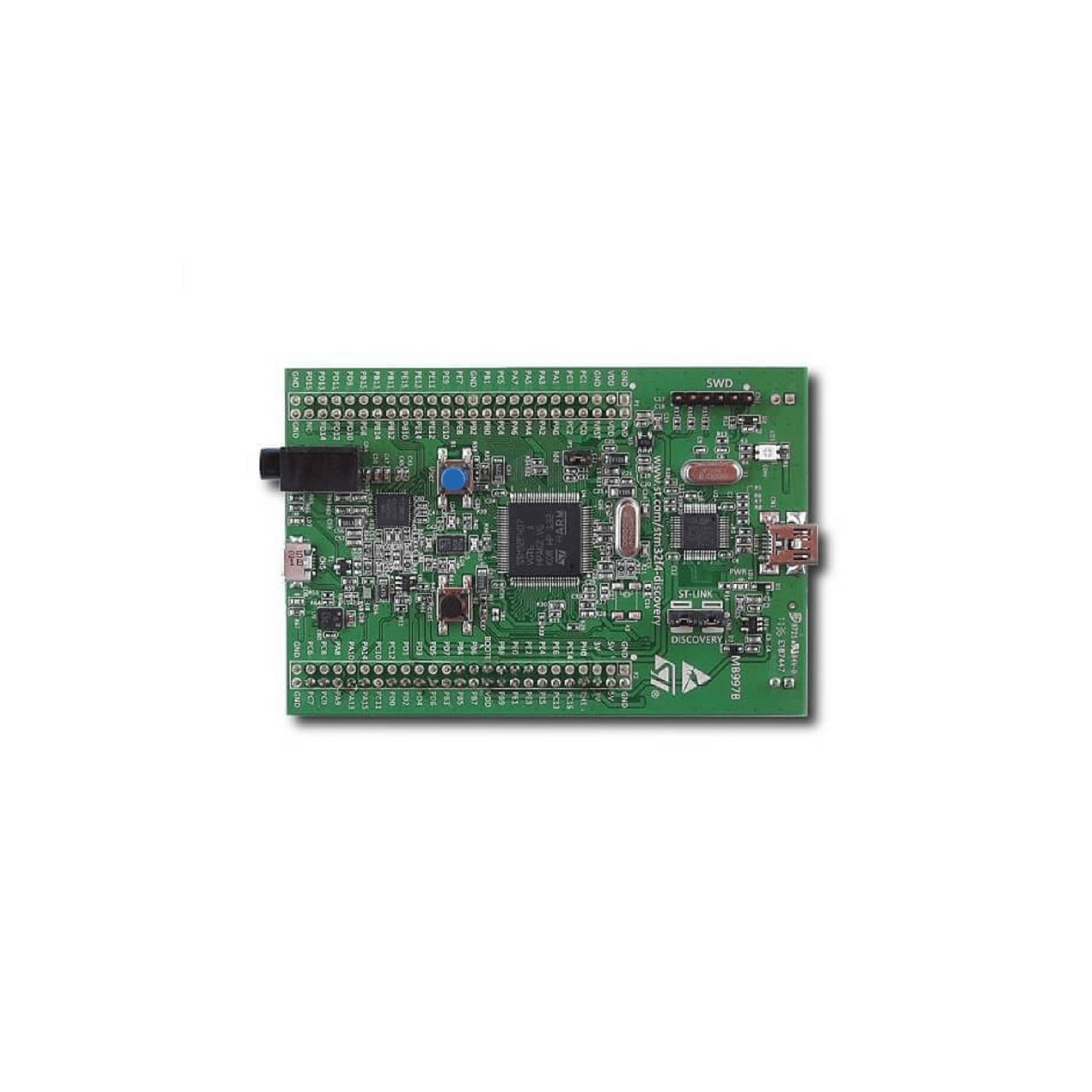

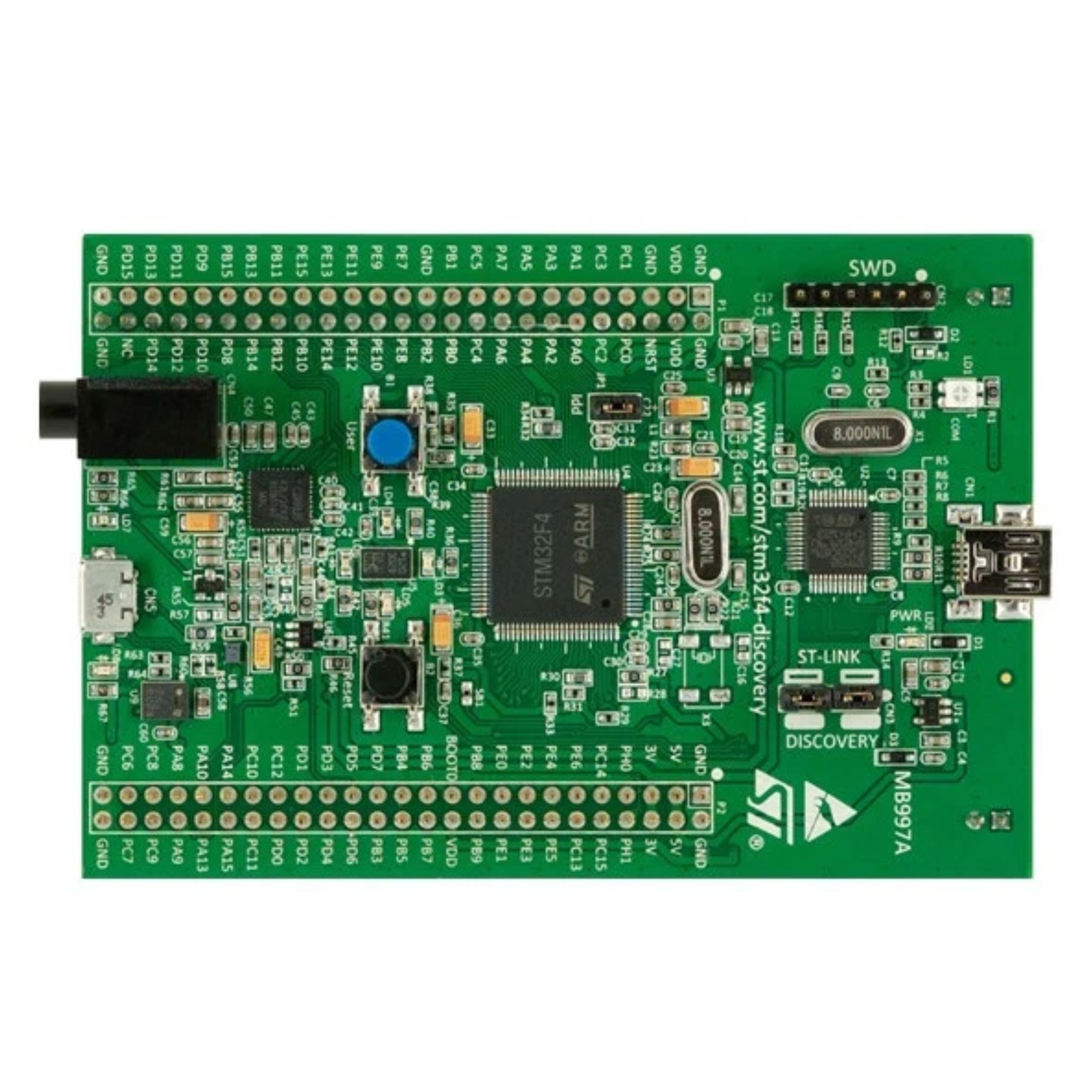

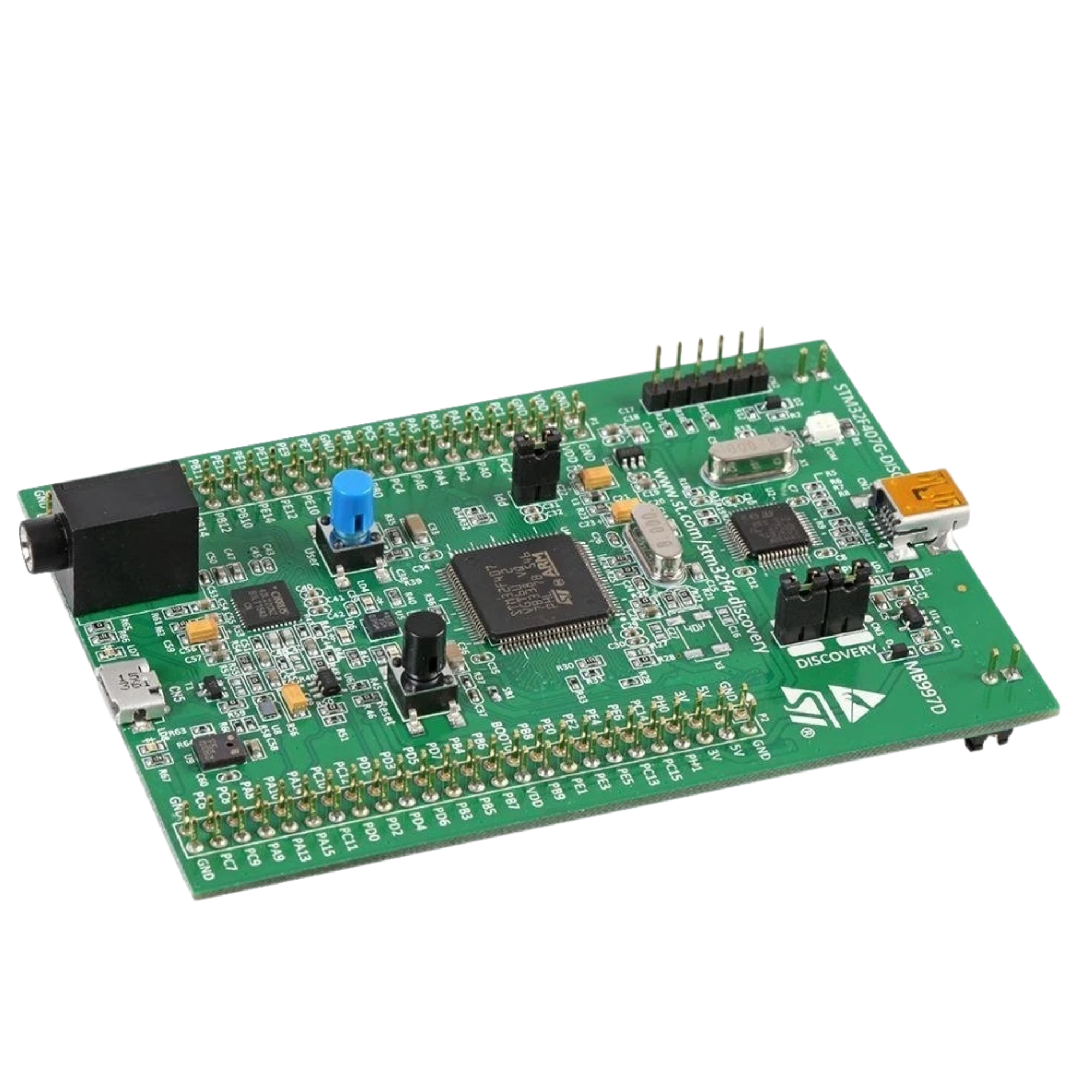

STM32F407 Discovery Kit

The STM32F407 Discovery Kit leverages the capabilities of the STM32F407 high-performance microcontrollers, to allow users to easily develop applications featuring audio. It includes an ST-LINK embedded debug tool, one ST-MEMS digital accelerometer, a digital microphone, one audio DAC with the integrated class D speaker driver, LEDs, push-buttons, and a USB OTG micro-AB connector.
To expand the functionality of the STM32F4 DISCOVERY kit with Ethernet connectivity, LCD display, and more, visit the www.st.com/stm32f4dis-expansion webpage. With the latest board enhancement, the new order code STM32F407G-DISC1 has replaced the old reference STM32F4 DISCOVERY.

Features:

1. STM32F407VGT6 microcontroller featuring 32-bit ARM^® Cortex^® -M4 with FPU core, 1-Mbyte Flash memory, 192-Kbyte RAM in an LQFP100 package
2. On-board ST-LINK/V2 on STM32F4 DISCOVERY (old reference) or ST-LINK/V2-A on STM32F407G-DISC1 (new order code)
3. USB ST-LINK with re-enumeration capability and three different interfaces:
   1. Debug port
   2. Virtual Com port (with new order code only)
   3. Mass storage (with new order code only)
4. Board power supply: through USB bus or from an external 5 V supply voltage
5. External application power supply: 3 V and 5 V
6. LIS302DL or LIS3DSH ST MEMS 3-axis accelerometer
7. MP45DT02 ST-MEMS audio sensor omnidirectional digital microphone
8. CS43L22 audio DAC with integrated class D speaker driver
9. Eight LEDs:
   1. LD1 (red/green) for USB communication
   2. LD2 (red) for 3.3 V power on
   3. Four user LEDs, LD3 (orange), LD4 (green), LD5 (red) and LD6 (blue)
   4. 2 USB OTG LEDs LD7 (green) VBUS and LD8 (red) over-current
10. Two push-buttons (user and reset)
11. USB OTG FS with micro-AB connector
12. Extension header for all LQFP100 I/Os for quick connection to prototyping board and easy probing
13. Comprehensive free software including a variety of examples, part of STM32CubeF4 package or STSW-STM32068 to use legacy standard libraries.
