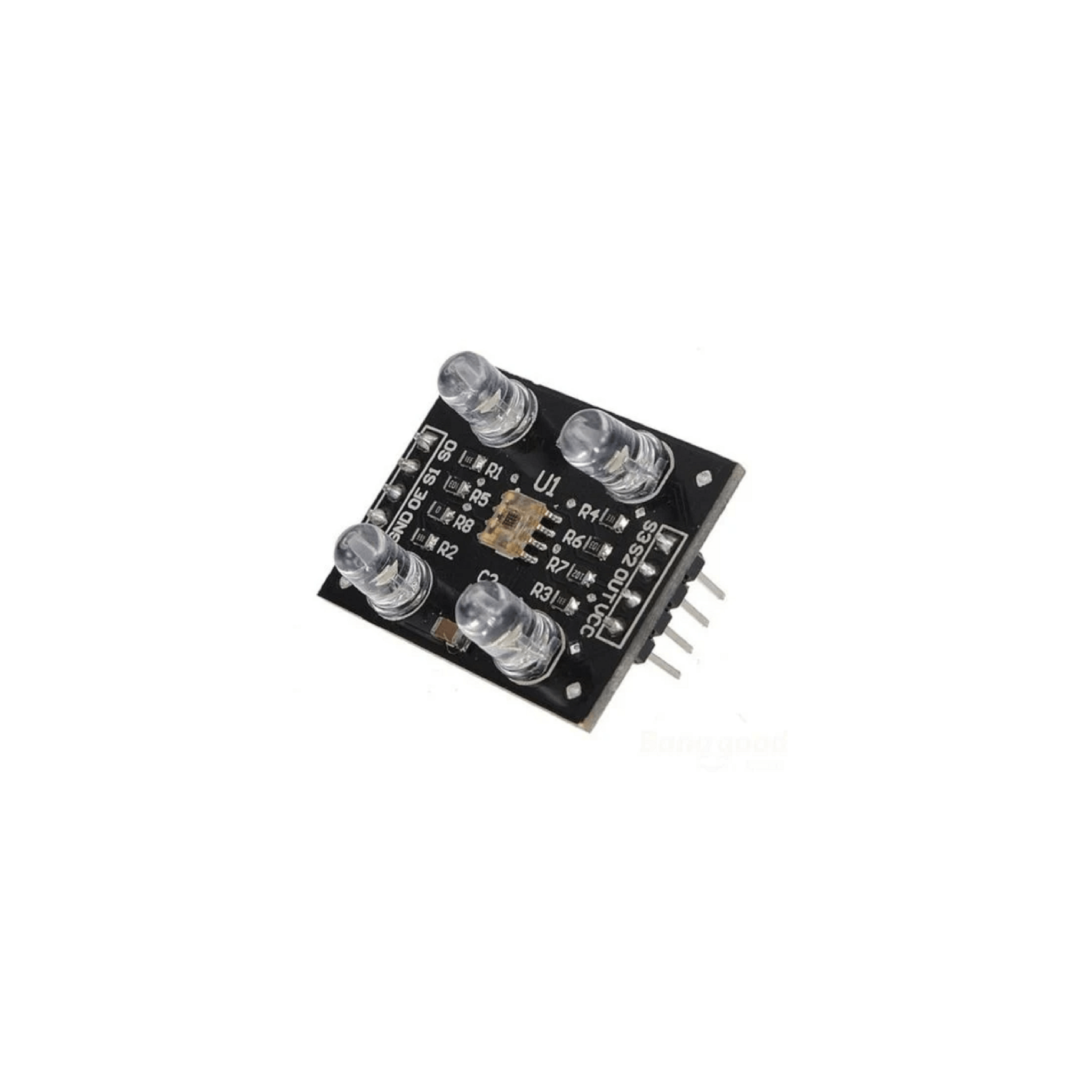

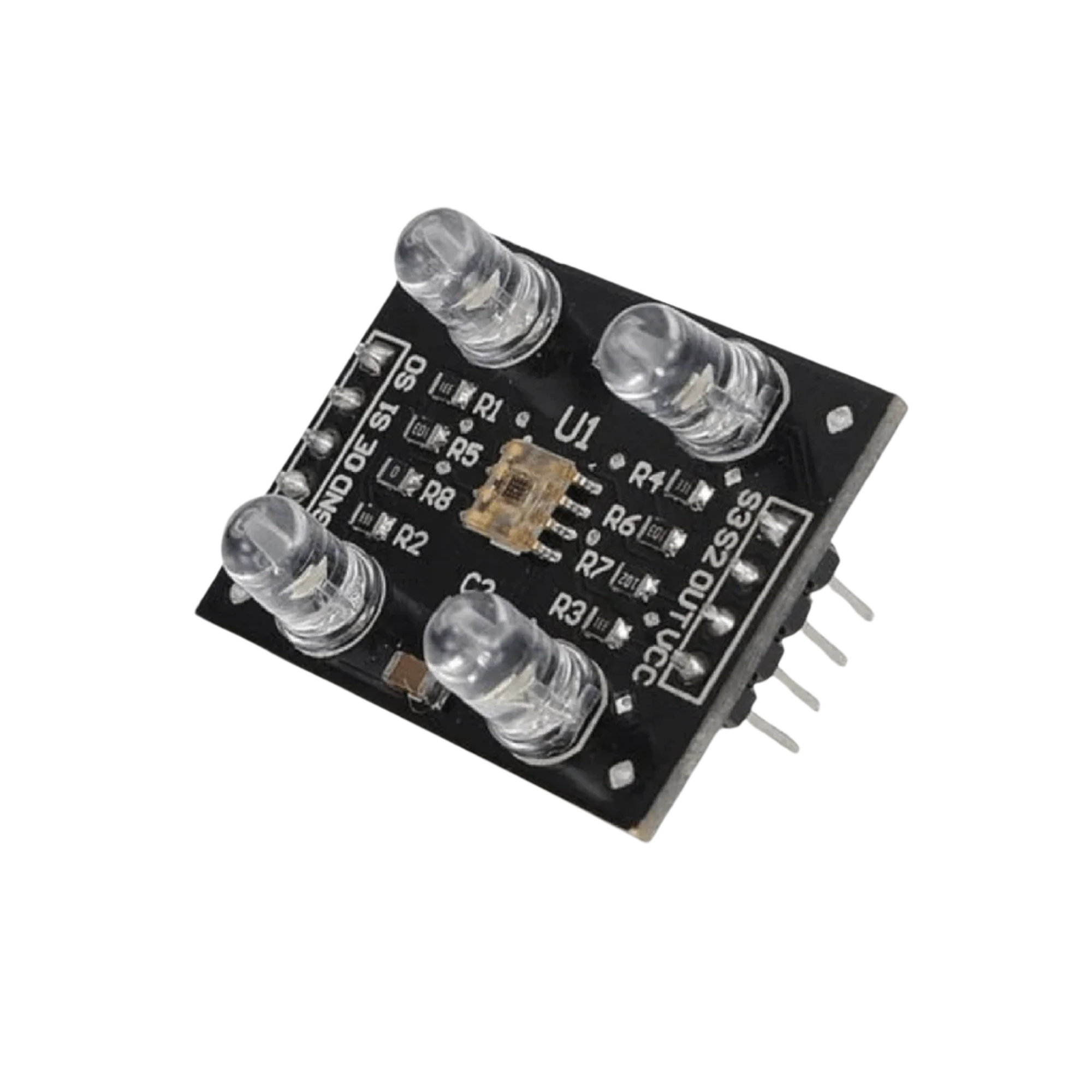

TCS3200 Color Recognition Sensor Module

Descriptions :

The TCS3200 color recognition sensor module is a device that allows you to detect and measure the color of an object. It's widely used in applications such as color sorting, color matching, and various projects where color sensing is essential. Here's an overview of the TCS3200 module:

• The TCS3200 uses an array of photodiodes and light filters to detect the intensity of red, green, and blue light reflected from an object.
• The sensor can be used in combination with white LEDs to illuminate the object for accurate color sensing.

Key Features :

• Array of Photodiodes: Sensitive to different wavelengths of light (Red, Green, Blue).
• Integrated White LEDs: Used for illuminating the object being sensed.
• Frequency-to-Voltage Converter: Converts the detected light frequencies into voltage signals.
• Color Output: Provides separate outputs for red, green, blue, and clear (no filter) components.

Pin Configuration :

• S0, S1: Frequency scaling selection pins.
• S2, S3: Photodiode type selection pins.
• OUT: Color frequency output pins (Red, Green, Blue, Clear).
• OE: Output enable pin.
• GND, VCC: Ground and power supply pins.

Applications :

• Colour sorting in industrial applications.
• Colour-based object recognition.
• Colour measurement and analysis.

Technical Specifications :

Package Included :

• 1 x TCS3200 Color Recognition Sensor Module
