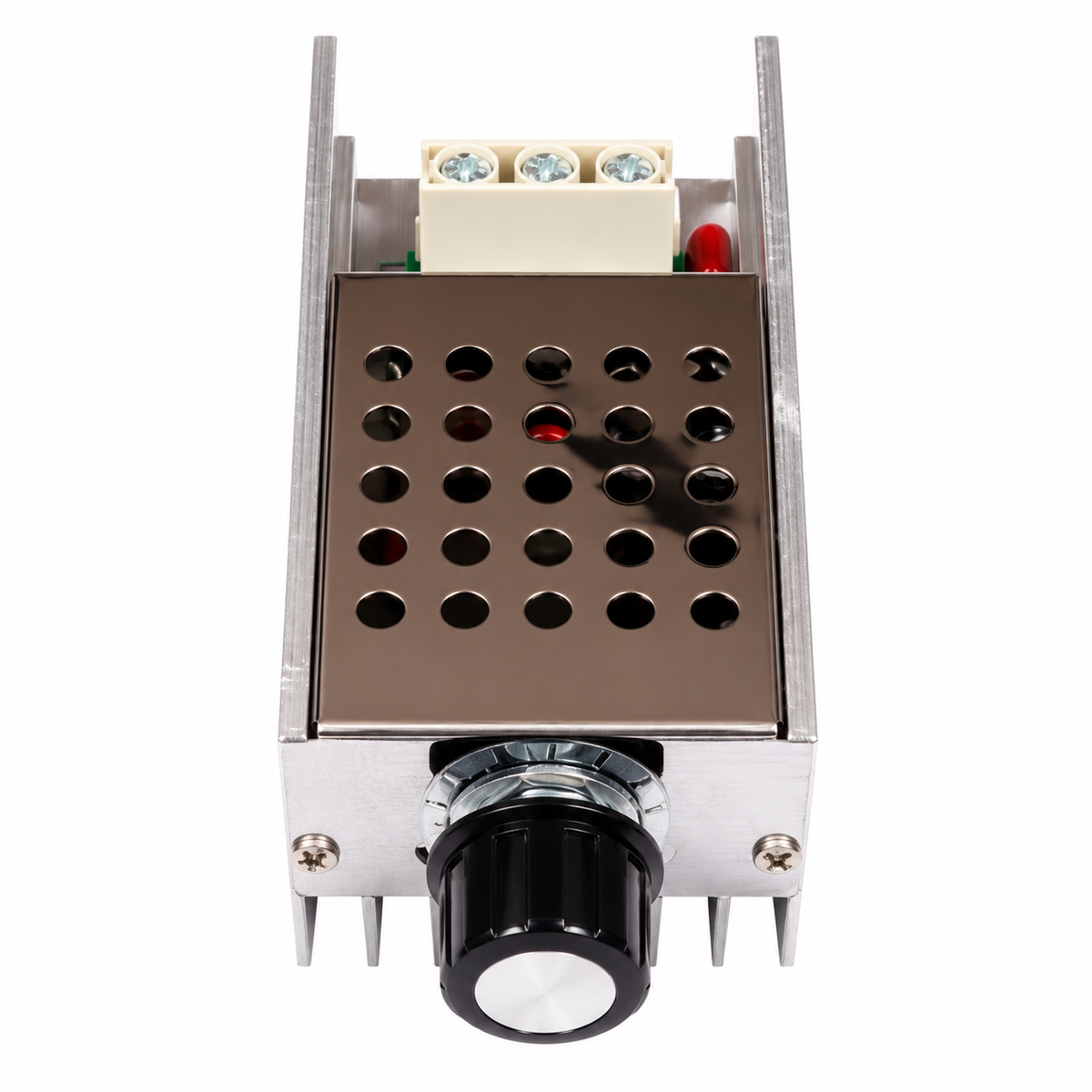

10000W SCR Thyristor Module

The 10000W SCR Thyristor Module is a high-power AC voltage regulator built around the BTA100-800B thyristor. Running on 220V AC, its onboard knob gives smooth output adjustment from about 10V up to 220V, making it ideal for heavy resistive loads such as heaters, stoves, soldering stations and high-wattage lamps.

Key Features

• Up to 10000W peak, 5000W continuous use

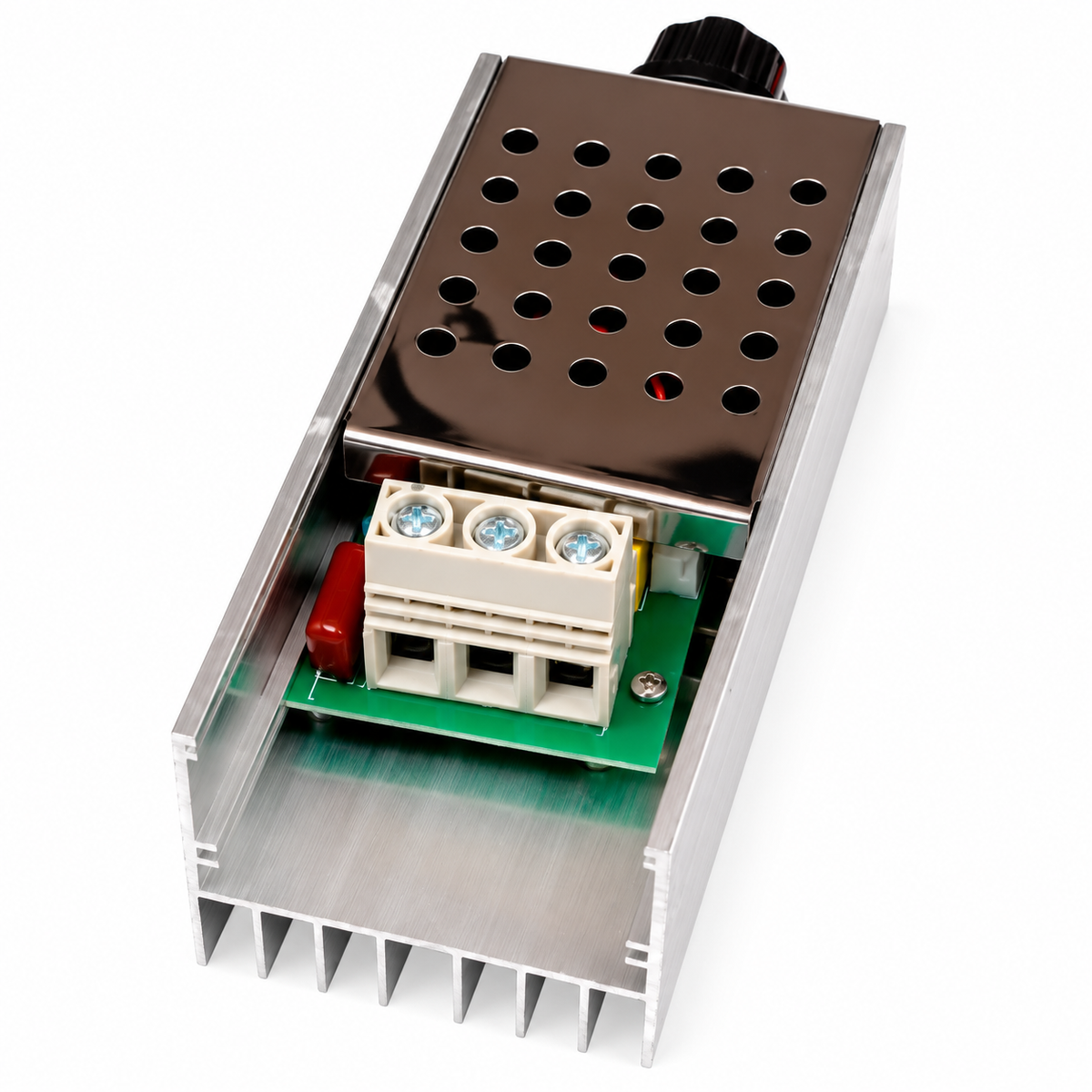

• Current capacity up to 57A with heavy-duty screw terminals

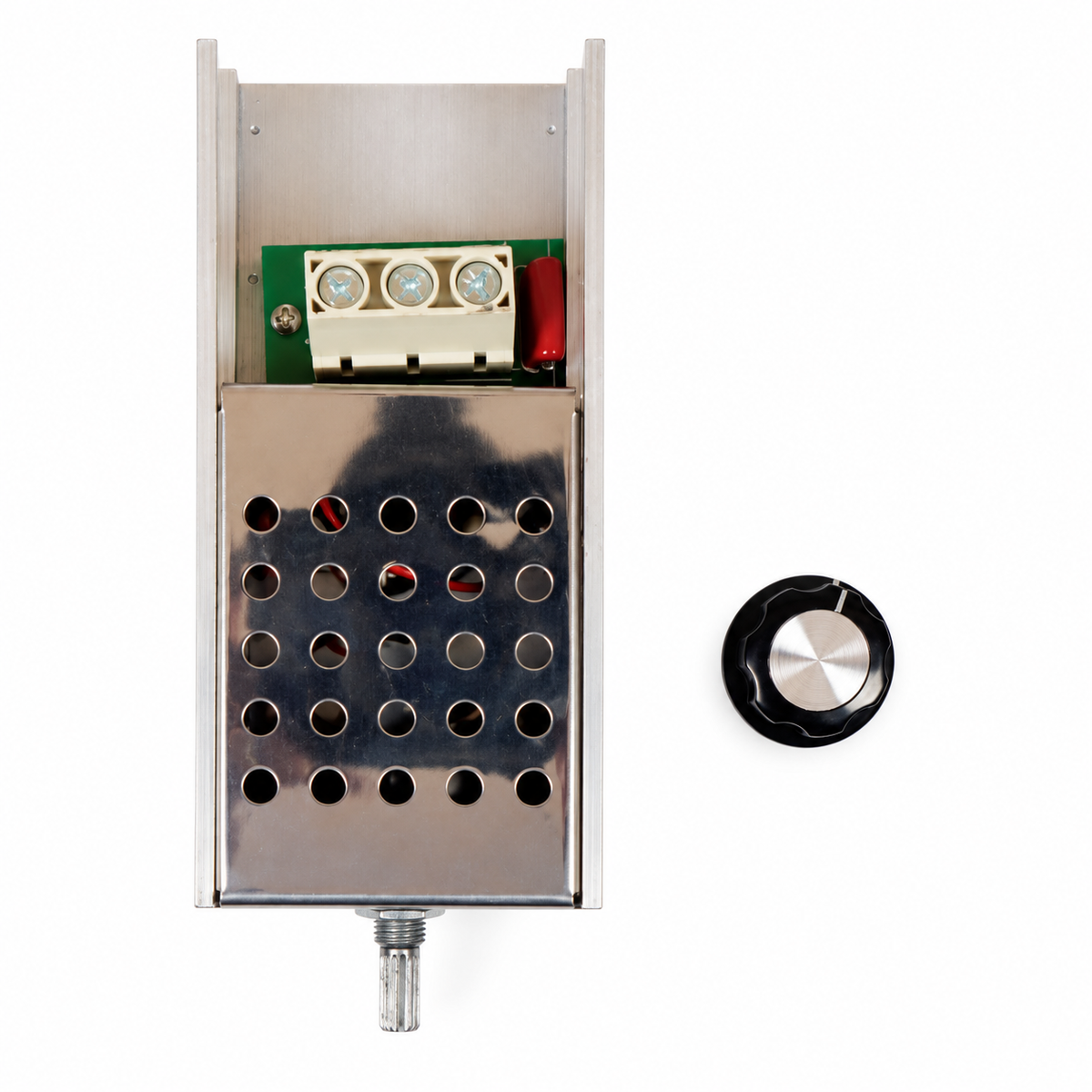

• Output adjustable from 10V – 220V AC via onboard potentiometer knob
• Large, thick heatsink and protective casing
• Double-layer PCB with high-voltage capacitor and ST trigger diode

Specifications

Typical Applications

• Water heaters, stoves and heating elements
• Soldering irons
• Lamp dimming
• Speed control of small fans and blowers

Important Notes

• Best suited for resistive loads. A load must be connected to adjust the output.
• Not suitable for SMPS devices (TVs, fridges, ACs, chargers, CFL/LED lamps), induction cookers or reversing motors.
• Above 1000W the casing can reach about 70°C; use a cooling fan for heavy loads.
• Works on AC mains voltage. Wire with power off and do not touch while powered.

Package Includes

• 1 x 10000W SCR BTA100-800B Voltage Regulator Module
