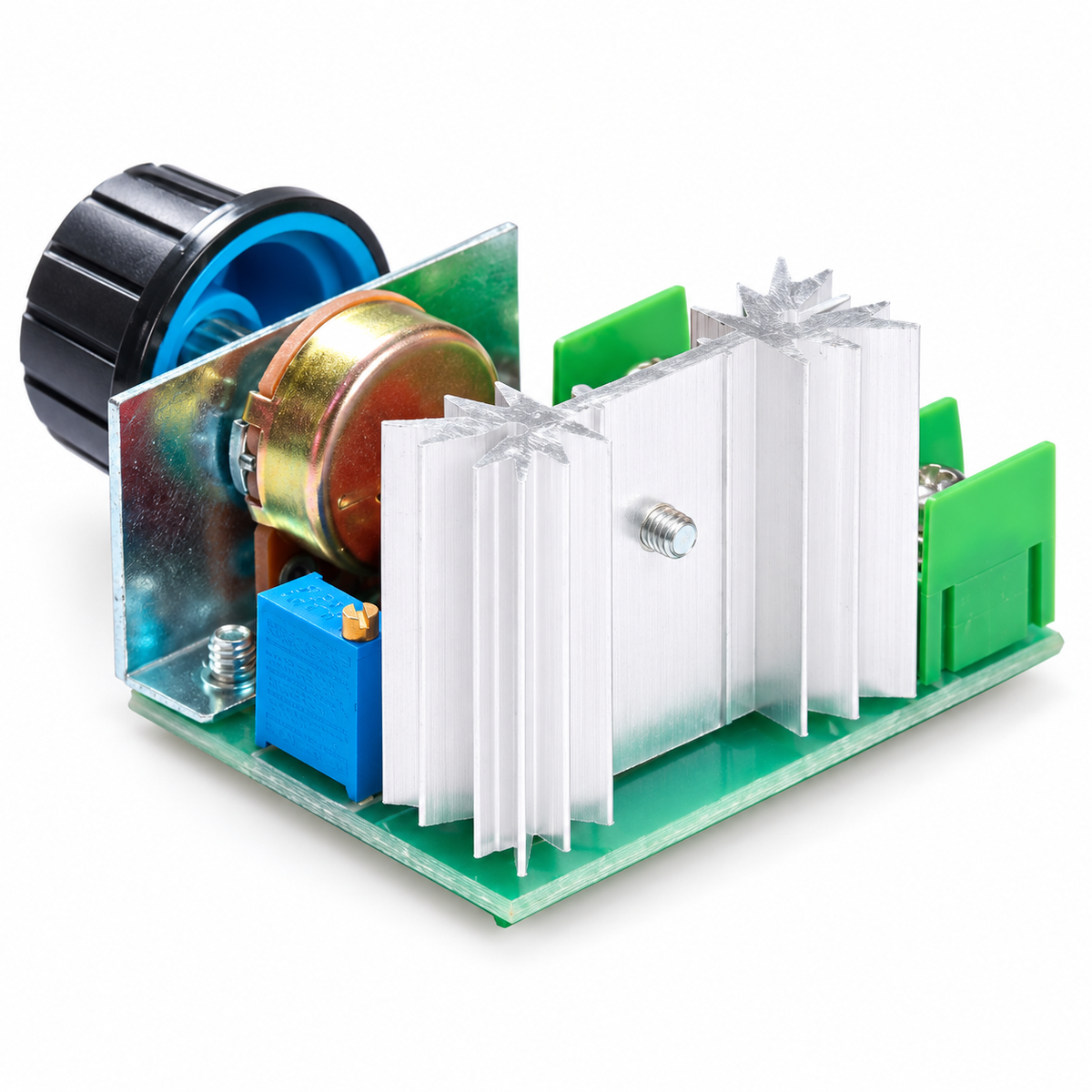

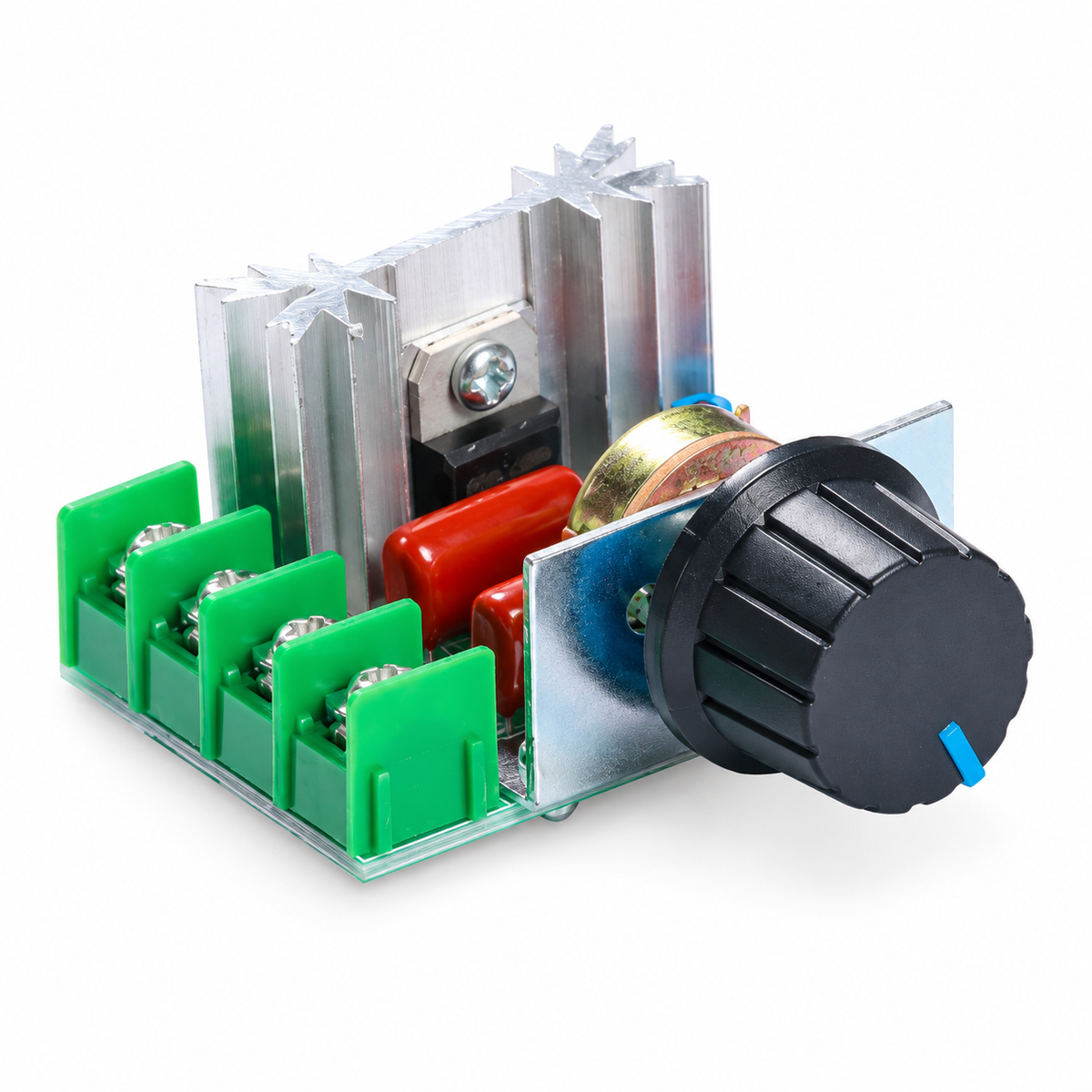

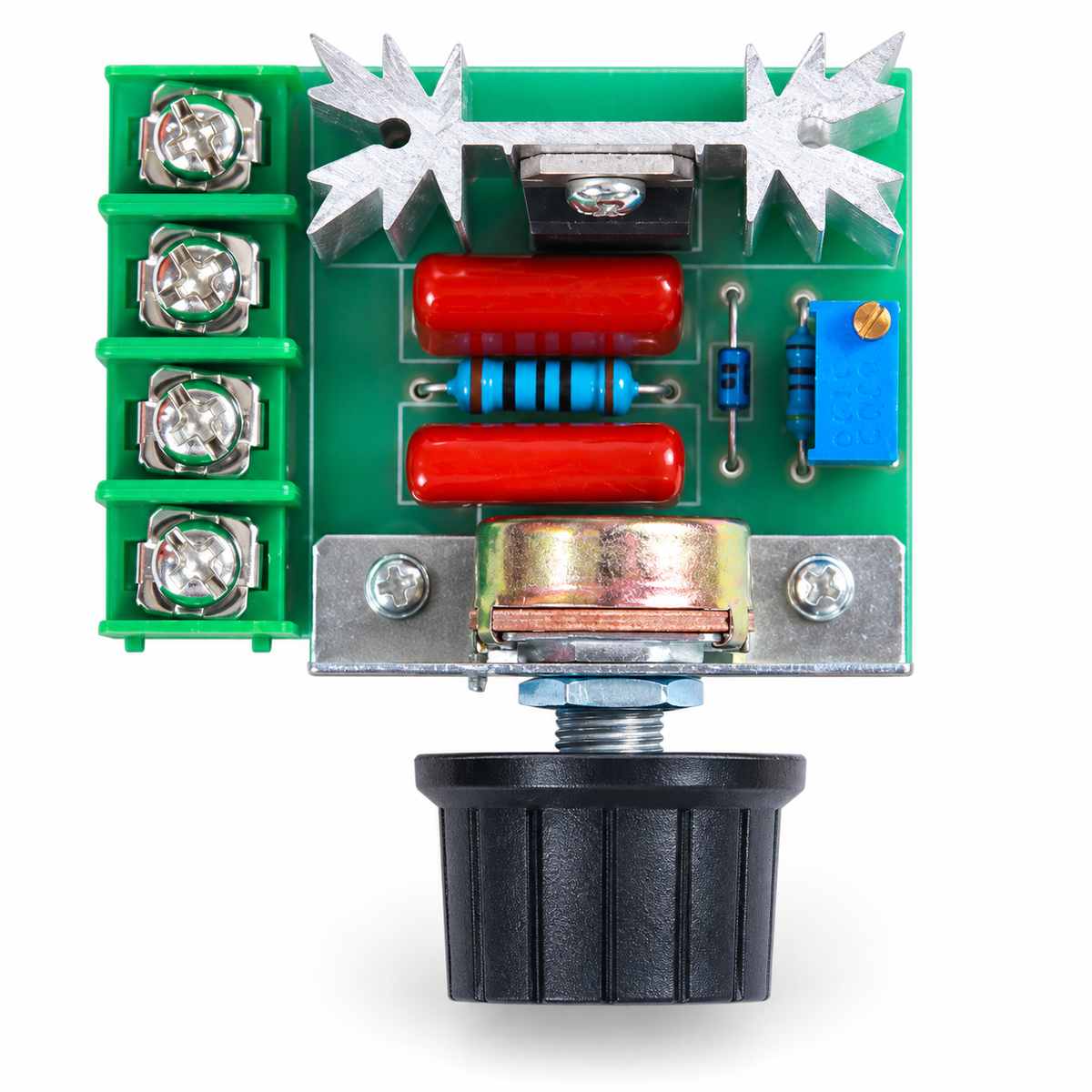

2000W SCR Thyristor Module

The 2000W SCR Thyristor Module is a compact AC voltage regulator that lets you smoothly control the power delivered to an AC load. Turn the onboard control to adjust the output from about 90V up to 220V, making it ideal for dimming lamps, controlling the speed of brushed motors and fans, and adjusting the heat of heaters and soldering irons.

Key Features

• Handles loads up to 2000W
• Wide AC input range: 110V – 230V
• Adjustable AC output: 90V – 220V
• Smooth, stepless adjustment of output power
• Compact, easy to wire and mount inside an enclosure

Specifications

Typical Applications

• Incandescent and halogen lamp dimming
• Speed control of brushed (universal) motors, drills, grinders and fans
• Temperature control of heaters, heating elements and soldering irons

Important Safety Notes

• This module works directly on AC mains voltage. Always wire it with the power switched off.
• The board is not isolated. Mount it in an insulated enclosure and never touch it while powered.
• Not suitable for LED, CFL or fluorescent lamps.

Package Includes

• 1 x 2000W SCR Thyristor Module
