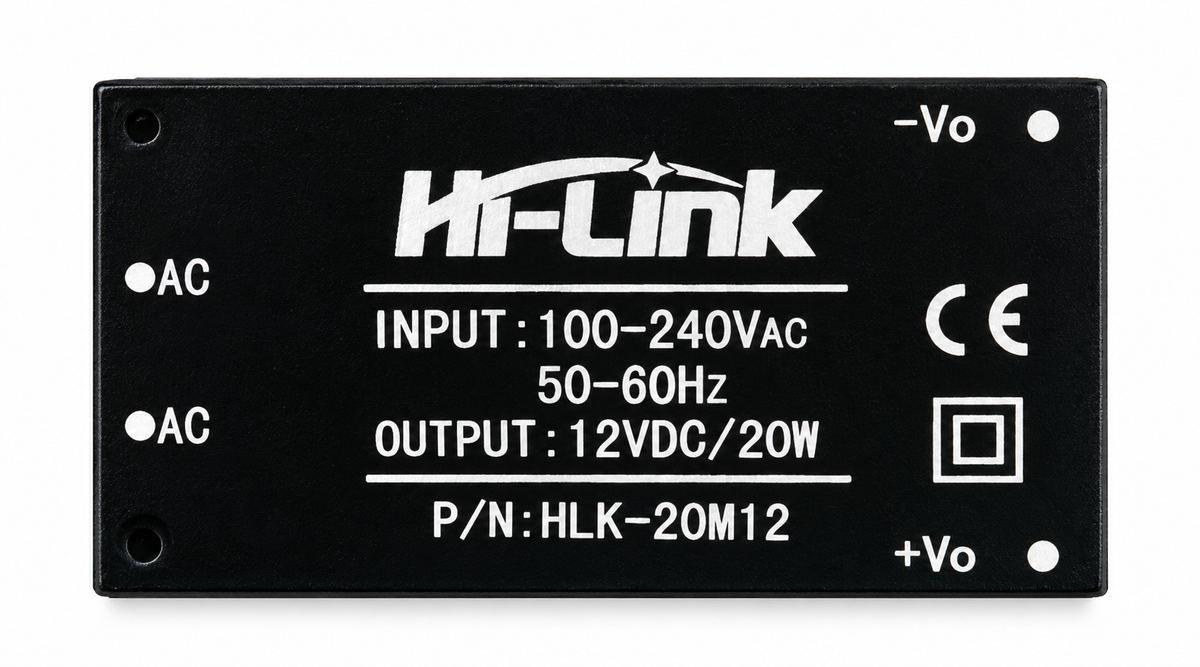

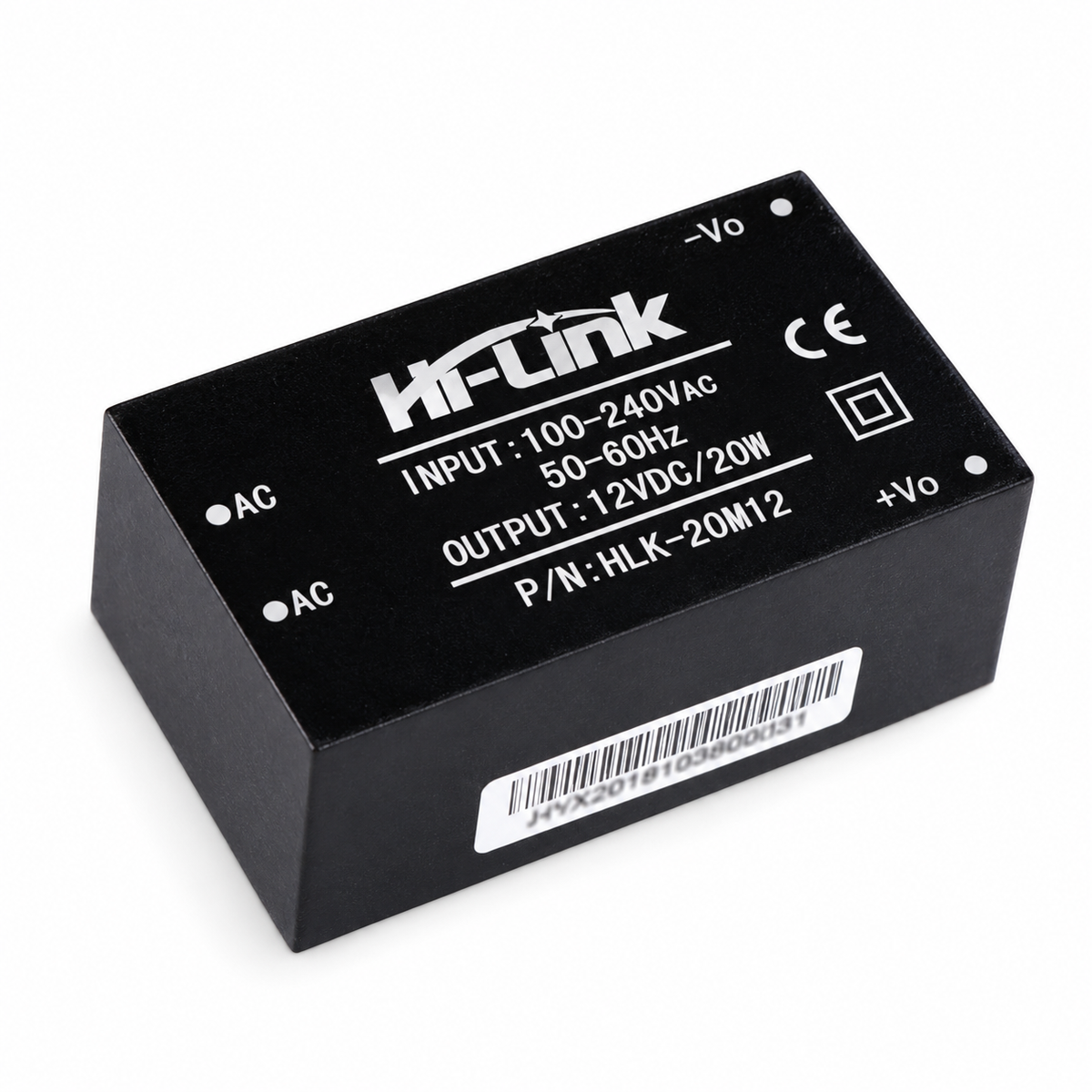

Hi-Link HLK-20M12 AC-DC Power Module 12 V 20 W
Product SKU: ANU-HLK20M12
Available:
Only a few left in stock
- 85–265 VAC in, 12 V DC out
- 1.6 A continuous (20 W)
- 82% or higher efficiency
- For LED strips, relays and small pumps
- Over-current and short-circuit protected
Rs. 469.00
- Description
The Hi-Link HLK-20M12 is the highest-power 12 V module in our Hi-Link range: an isolated AC-DC converter giving a regulated 12 V at 1.6 A continuous (20 W) from mains AC. Use it where the HLK-5M12 (12 V, 0.42 A) is not enough.
Specifications
| Input | 85–265 VAC (100–240 VAC rated) |
|---|---|
| Output | 12 V DC, 1.6 A continuous (20 W) |
| Ripple and noise | Up to 150 mV p-p; about 30 mV with a 100–220 µF output capacitor |
| Efficiency | 82% or more at full load |
| Protection | Over-current (110–150% load) and short-circuit, self-recovering |
| Size | 57 × 33 × 22.5 mm, PCB mount |
| Operating temperature | −25 to +60 °C |
Typical uses
- 12 V LED strip lighting (up to about 1.5 A)
- Boards with several 12 V relays or a small 12 V pump
- 12 V rail feeding 5 V and 3.3 V regulators in one mains-powered product
Practical notes
- Add a 100–220 µF electrolytic capacitor across the output, as the datasheet recommends, for lower ripple.
- At full 20 W the module gets warm; leave air space around it inside the enclosure.
Safety
This module connects to mains voltage, which can be lethal. Fit a fuse on the AC input, keep wide spacing between the AC and DC sides of your PCB, enclose the finished circuit, and never touch it while powered.
What's included
- 1 × Hi-Link HLK-20M12 module
