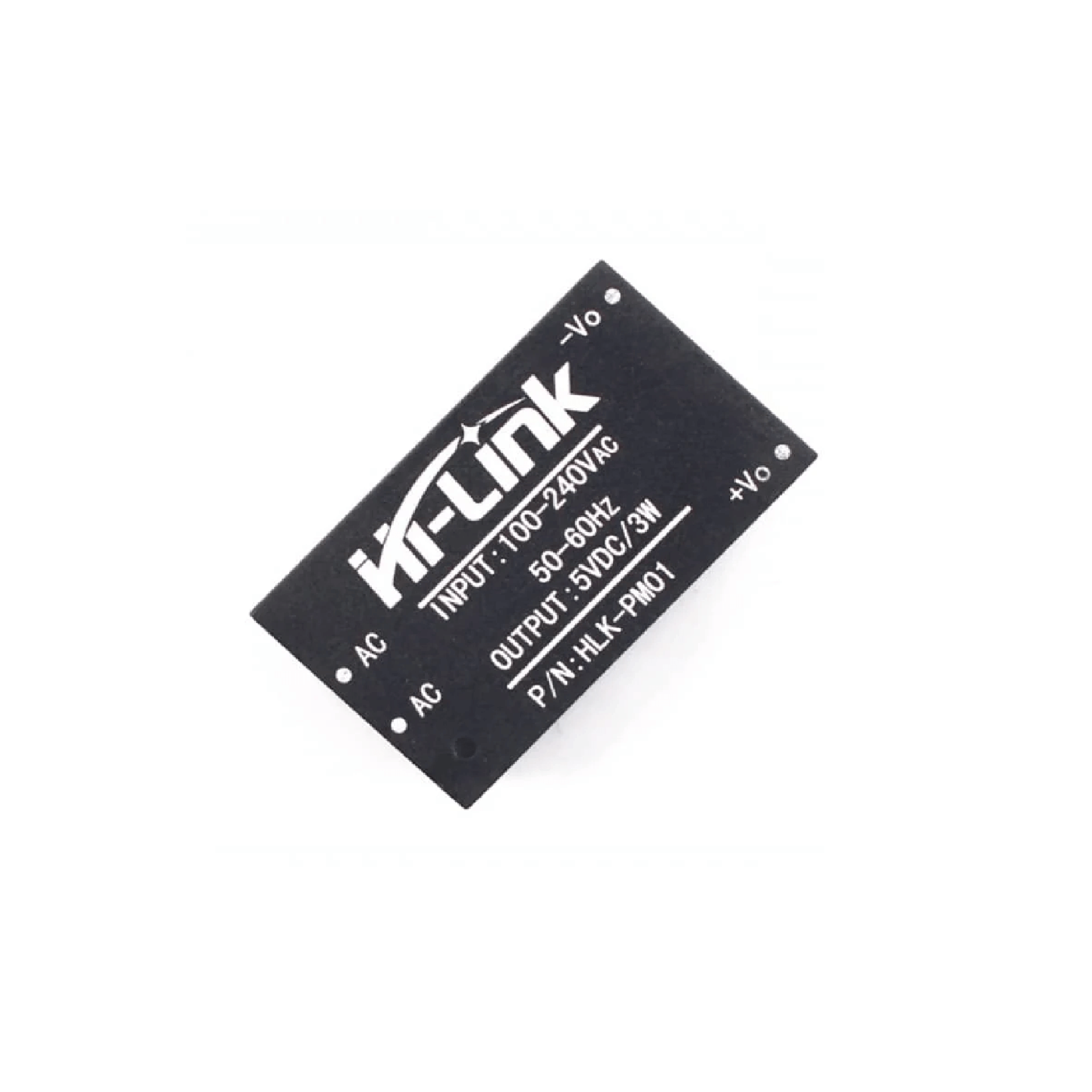

Hi-Link HLK-PM01 AC-DC Power Module 5 V 3 W
Product SKU: PS000002
Available:
Only a few left in stock
- 85–265 VAC in, 5 V DC out
- 600 mA (3 W)
- 3000 VAC isolation
- Short-circuit protected
- Compact 34 × 20 mm footprint
Rs. 199.00
- Description
The Hi-Link HLK-PM01 is the most widely used small mains power module in DIY smart-home projects. It converts mains AC into an isolated, regulated 5 V DC at 3 W (600 mA) in a compact 34 × 20 mm through-hole package.
Specifications
| Input | 85–265 VAC |
|---|---|
| Output | 5 V DC, 3 W (600 mA) |
| Output accuracy | ±0.2% |
| Isolation | 3000 VAC input to output |
| Ripple and noise | Up to 100 mV p-p |
| Efficiency | About 73% |
| No-load power | About 0.1 W |
| Protection | Short-circuit and over-current, self-recovering |
| Size | 34 × 20 × 15 mm, through-hole |
| Operating temperature | −25 to +60 °C |
Typical uses
- ESP8266 or ESP-01 based smart plugs and wall switches
- Arduino Nano projects powered from mains
- 5 V supply for a single relay module and a sensor
Practical notes
- For ESP8266 or ESP32 boards, add a 3.3 V regulator with its own input and output capacitors. Keep the total capacitance directly on the module's 5 V output at 220 µF or less; larger values can stop the module starting up.
- If you need more than 600 mA, step up to the HLK-5M05 (1 A) or HLK-10M05 (2 A).
Safety
This module connects to mains voltage, which can be lethal. Fit a fuse on the AC input, keep wide spacing between the AC and DC sides of your PCB, enclose the finished circuit, and never touch it while powered.
What's included
- 1 × Hi-Link HLK-PM01 module
